The Sun Hydraulics RPKSLBV (RPKSLBV) is a pilot-operated, balanced-poppet relief cartridge designed for precision pressure regulation. This valve remains normally closed and activates when the inlet port pressure reaches a predetermined setting, opening to the tank port to throttle flow and maintain consistent pressure levels. Known for its accuracy, smooth operation, quiet performance, and quick response time of approximately 7 milliseconds, this valve also features a low-pressure rise versus flow. The internal modulation of the cartridge makes it resistant to cavitation-related issues such as noise and manifold erosion. It can handle maximum pressure at port 2, making it suitable for cross-port relief circuits. The valve's design ensures insensitivity to varying oil temperatures and contamination, with its main stage orifice protected by a 150-micron stainless steel screen. Back pressure on the tank port directly affects the valve setting at a 1:1 ratio. This model supports adjustments using W or Y controls without special settings unless specified otherwise. Corrosion-resistant options are available with external stainless steel or zinc-nickel plated components identified by suffixes AP or LH in the model code. The Sun floating style construction minimizes internal binding risks due to installation torque or machining variations. With a capacity of 200 gpm (760 L/min) and maximum operating pressure of 5000 psi (350 bar), this valve is built for robust applications. It features a hex size of 1-5/8 inches (41.3 mm) and requires an installation torque between 350-375 lbf ft (474-508 Nm). The product weighs approximately 2.50 lb (1.15 kg), and it comes with an optional Viton seal kit available under part number 990318006 for enhanced durability in various environments.

Description

Pilot-operated, balanced-poppet relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. These valves are accurate, smooth, quiet, fast, and have low pressure rise vs. flow.

Because the modulating occurs inside the cartridge, these valves are immune to most of the problems associated with cavitation, namely noise and manifold erosion.
Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
Valve is relatively insensitive to varying oil temperatures and oil borne contamination.
Main stage orifice is protected by a 150 micron stainless steel screen.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

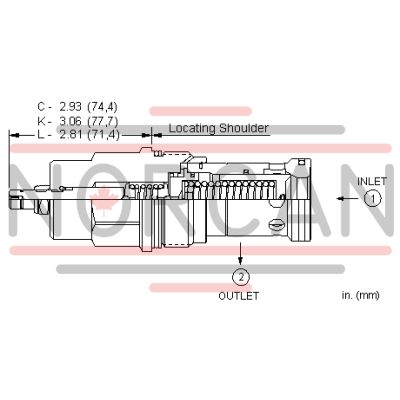

Cavity	T-18A
Series	4
Capacity	200 gpm760 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Response Time - Typical	7 ms7 ms
Maximum Valve Leakage at Reseat	10 drops/min.0,7 cc/min.
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 5/8 in.41,3 mm
Valve Installation Torque	350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	2.50 lb1,15 kg
Seal kit - Cartridge	Viton: 990-318-006

Show FAQ

Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
