RPKSYQN

$455.40 USD

SUN HYDRAULICS
Material:RPKSYQN
Model:RPKS-YQN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RPKSYQN (RPKSYQN) is a pilot-operated, balanced poppet relief cartridge designed to regulate pressure by opening to the tank port when inlet port pressure reaches a set threshold. This valve offers high accuracy, smooth operation, and low noise levels, making it suitable for use in cross-port relief circuits. It is particularly resilient against cavitation-related issues such as noise and erosion due to its internal modulation. The valve can handle maximum pressures at port 2 and remains stable under varying oil temperatures and contamination levels. It features a main stage orifice protected by a 150-micron stainless steel screen and has an adjustable setting range that can be fine-tuned using W or Y controls. The valve's construction includes corrosion-resistant options for harsh environments, identified by model code suffixes AP or LH for external stainless steel or zinc-nickel plated components, respectively. The RPKSYQN incorporates Sun's floating style construction to prevent binding from installation torque or machining variations. It fits into a Cavity T-18A with Series 4 capacity, supporting flow rates up to 200 gpm (760 L/min) and operating pressures of up to 5000 psi (350 bar). The typical response time is around 7 ms, with maximum leakage at reseat limited to 10 drops/min (0.7 cc/min). The valve requires specific torque settings for installation and adjustment: the hex size for the valve is 1-5/8 inches (41.3 mm), with an installation torque of 350-375 lbf ft (474-508 Nm). Adjustment involves turning an internal hex screw of size 5/32 inches (4 mm), secured by a locknut torqued at 80-90 lbf in (9-10 Nm). The model weighs approximately 2.50 lb (1.15 kg) and uses Viton seals identified by part number 990318006 for maintenance needs.

Description

Pilot-operated, balanced-poppet relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. These valves are accurate, smooth, quiet, fast, and have low pressure rise vs. flow.

Because the modulating occurs inside the cartridge, these valves are immune to most of the problems associated with cavitation, namely noise and manifold erosion.
Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
Valve is relatively insensitive to varying oil temperatures and oil borne contamination.
Main stage orifice is protected by a 150 micron stainless steel screen.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

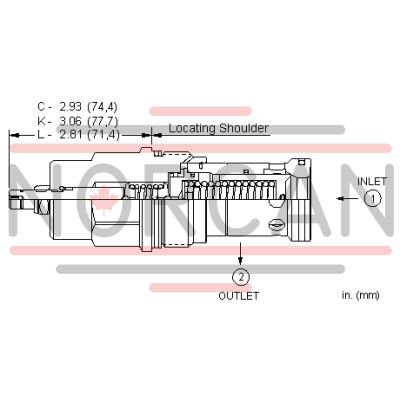

Cavity	T-18A
Series	4
Capacity	200 gpm760 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Response Time - Typical	7 ms7 ms
Maximum Valve Leakage at Reseat	10 drops/min.0,7 cc/min.
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 5/8 in.41,3 mm
Valve Installation Torque	350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	2.50 lb1,15 kg
Seal kit - Cartridge	Viton: 990-318-006

Show FAQ

Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
