SUN HYDRAULICS
RQCBLNV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

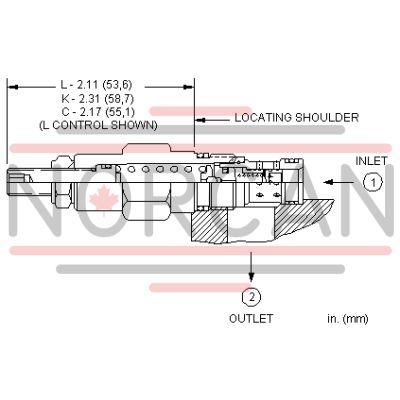

The Sun Hydraulics RQCBLNV (RQCBLNV) is a kickdown relief cartridge designed to function similarly to a circuit breaker in hydraulic systems. This valve activates by opening completely and maintaining an open state when the inlet port 1 pressure surpasses the preset threshold, allowing unrestricted flow from port 1 to tank port 2. It remains open until the pressure at port 1 drops below that at port 2. To reset the valve, flow from port 1 to port 2 must cease, and pressure at port 2 must meet or exceed that of port 1. The main stage orifice is shielded by a durable 150-micron stainless steel screen, though it is not suitable for load-holding applications. It is primarily intended for use on the actuator side of systems since flow through the valve must stop for resetting; if used on the pump side, pump flow needs to be halted for reset. Notably, back pressure on tank port 2 adds directly to the valve setting in a one-to-one ratio. All two-port relief cartridges, aside from pilot reliefs, are interchangeable physically and functionally with identical flow paths and cavity sizes within a given frame size. This model incorporates Sun's floating style construction to reduce internal part binding risks due to excessive installation torque or cavity/cartridge machining variations. The RQCBLNV has a capacity of up to 12 gpm (45 L/min) with a maximum operating pressure of 5000 psi (350 bar). Its typical response time is around 25 milliseconds with minimal leakage under specified conditions. Adjustments can be made with clockwise turns; it features specific hex sizes for both adjustment screws and locknuts, along with defined installation torque requirements. Weighing only .20 lb (0.10 kg), this cartridge also supports Viton seal kits for maintenance needs.
