SUN HYDRAULICS
RSBCCNN
$79.62 USD
- SUN HYDRAULICS
- Material:RSBCCNN
- Model:RSBC-CNN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

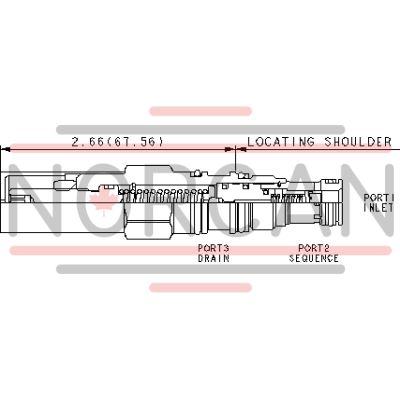

The Sun Hydraulics RSBCCNN (RSBCCNN) is a pilot-operated, balanced piston sequence valve designed to manage secondary circuit flow once the inlet port pressure surpasses the valve setting. This component precisely controls pressure at port 1 relative to port 3 and remains unaffected by back pressure at port 2, up to the valve setting. It can substitute for two-port relief valves when there is return line pressure. The RSBCCNN model showcases interchangeability across all three-port sequence cartridges, maintaining identical flow paths and cavity requirements within a specific frame size. Its main stage orifice is safeguarded by a 150-micron stainless steel screen, ensuring durability and reliability. The valve's minimum setting is 75 psi (5 bar), with a maximum operating pressure of 5000 psi (350 bar). Pressure at port 3 directly adds to the valve setting at a 1:1 ratio but should not exceed the maximum limit. This model is not recommended for load-holding applications due to potential spool leakage. For systems utilizing phosphate ester fluids, cartridges configured with EPDM seals are available; however, these seals are vulnerable to damage from petroleum-based substances. The RSBCCNN incorporates Sun's floating style construction, mitigating risks of internal binding caused by excessive installation torque or machining variations. It supports a capacity of 7.5 gpm (30 L/min) with factory settings established at 4 gpm (15 L/min). The response time typically measures around 10 ms, while maximum leakage is rated at 2 in\u00b3/min (30 cc/min) under specified conditions. Installation requires specific torques for various components: valve hex size at \u00be in., adjustment screw internal hex size at ^5/32 in., and locknut hex size at ^9/16 in., with corresponding torque values provided for optimal performance and security during setup.
The Sun Hydraulics RSBCCNN (RSBCCNN) is a pilot-operated, balanced piston sequence valve designed to manage secondary circuit flow once the inlet port pressure surpasses the valve setting. This component precisely controls pressure at port 1 relative to port 3 and remains unaffected by back pressure at port 2, up to the valve setting. It can substitute for two-port relief valves when there is return line pressure. The RSBCCNN model showcases interchangeability across all three-port sequence cartridges, maintaining identical flow paths and cavity requirements within a specific frame size. Its main stage orifice is safeguarded by a 150-micron stainless steel screen, ensuring durability and reliability. The valve's minimum setting is 75 psi (5 bar), with a maximum operating pressure of 5000 psi (350 bar). Pressure at port 3 directly adds to the valve setting at a 1:1 ratio but should not exceed the maximum limit. This model is not recommended for load-holding applications due to potential spool leakage. For systems utilizing phosphate ester fluids, cartridges configured with EPDM seals are available; however, these seals are vulnerable to damage from petroleum-based substances. The RSBCCNN incorporates Sun's floating style construction, mitigating risks of internal binding caused by excessive installation torque or machining variations. It supports a capacity of 7.5 gpm (30 L/min) with factory settings established at 4 gpm (15 L/min). The response time typically measures around 10 ms, while maximum leakage is rated at 2 in\u00b3/min (30 cc/min) under specified conditions. Installation requires specific torques for various components: valve hex size at \u00be in., adjustment screw internal hex size at ^5/32 in., and locknut hex size at ^9/16 in., with corresponding torque values provided for optimal performance and security during setup.
Pilot-operated, balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Minimum setting is 75 psi (5 bar) for all spring ranges.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Not suitable for use in load holding applications due to spool leakage.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-163A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.30 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-163-006 |
