SUN HYDRAULICS
RSBCKAN
$83.59 USD
- SUN HYDRAULICS
- Material:RSBCKAN
- Model:RSBC-KAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

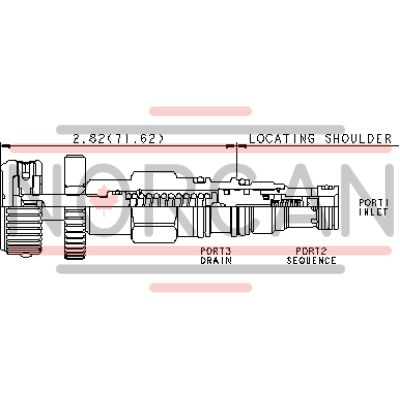

The Sun Hydraulics RSBCKAN (RSBCKAN) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the pressure at the inlet port 1 exceeds the valve setting. This valve controls the pressure at port 1 relative to the drain port 3 and remains insensitive to back pressure at port 2 up to the valve setting. It can regulate pressure in place of 2-port relief valves if there is pressure in the return line. The RSBCKAN model allows for interchangeable use with other three-port sequence cartridges, maintaining consistent flow paths and cavity sizes for given frame sizes. Notable features include a main stage orifice protected by a 150-micron stainless steel screen, a minimum setting of 75 psi, and a maximum operating pressure of 5000 psi. It is not suitable for load-holding applications due to spool leakage. The cartridge uses EPDM seals for compatibility with phosphate ester fluids, but these seals are vulnerable to petroleum-based substances. The floating style construction minimizes internal part binding from excessive installation torque or machining variations. This model has a capacity of 7.5 gpm and typical response time of 10 ms, with maximum leakage at specified conditions being 30 cc/min. Installation requires specific torque values for various components such as valve hex size and locknut torque, ensuring secure assembly and optimal performance in hydraulic systems.
The Sun Hydraulics RSBCKAN (RSBCKAN) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the pressure at the inlet port 1 exceeds the valve setting. This valve controls the pressure at port 1 relative to the drain port 3 and remains insensitive to back pressure at port 2 up to the valve setting. It can regulate pressure in place of 2-port relief valves if there is pressure in the return line. The RSBCKAN model allows for interchangeable use with other three-port sequence cartridges, maintaining consistent flow paths and cavity sizes for given frame sizes. Notable features include a main stage orifice protected by a 150-micron stainless steel screen, a minimum setting of 75 psi, and a maximum operating pressure of 5000 psi. It is not suitable for load-holding applications due to spool leakage. The cartridge uses EPDM seals for compatibility with phosphate ester fluids, but these seals are vulnerable to petroleum-based substances. The floating style construction minimizes internal part binding from excessive installation torque or machining variations. This model has a capacity of 7.5 gpm and typical response time of 10 ms, with maximum leakage at specified conditions being 30 cc/min. Installation requires specific torque values for various components such as valve hex size and locknut torque, ensuring secure assembly and optimal performance in hydraulic systems.
Pilot-operated, balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Minimum setting is 75 psi (5 bar) for all spring ranges.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Not suitable for use in load holding applications due to spool leakage.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-163A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.30 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-163-006 |
