SUN HYDRAULICS
RSBCLNV
$79.62 USD
- SUN HYDRAULICS
- Material:RSBCLNV
- Model:RSBC-LNV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

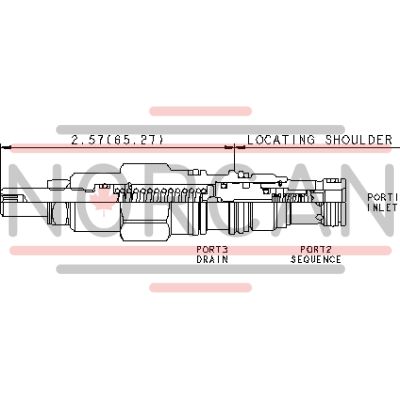

The Sun Hydraulics RSBCLNV (RSBCLNV) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This sequence valve is engineered to control the pressure at port 1 relative to the drain port 3, remaining unaffected by back pressure at port 2 up to the valve's set point. It offers versatility by acting as a pressure regulator in place of two-port relief valves when there is return line pressure. All three-port sequence cartridges are interchangeable in terms of flow path and cavity size for a given frame size. The valve's pilot flow increases as the inlet pressure at port 1 rises above the setting relative to port 3. The RSBCLNV features a main stage orifice protected by a 150-micron stainless steel screen and has a minimum setting of 75 psi (5 bar) for all spring ranges. Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio, with an upper limit of 5000 psi (350 bar). It is not suitable for load-holding applications due to spool leakage. Cartridges configured with EPDM seals are intended for systems using phosphate ester fluids and should avoid contact with petroleum-based substances. This model utilizes Sun's floating style construction, which minimizes internal part binding risks due to excessive torque or machining variations. It has a capacity of 7.5 gpm (30 L/min) and operates up to a maximum pressure of 5000 psi (350 bar). The typical response time is around 10 ms, with maximum leakage rated at approximately 2 in\u00b3/min (30 cc/min) under specified conditions. The cartridge requires specific installation torques and adjustments detailed in its specifications, including an adjustment screw internal hex size of 5/32 inches and locknut torque specifications between 80-90 lbf\u00b7in (9-10 Nm).
The Sun Hydraulics RSBCLNV (RSBCLNV) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This sequence valve is engineered to control the pressure at port 1 relative to the drain port 3, remaining unaffected by back pressure at port 2 up to the valve's set point. It offers versatility by acting as a pressure regulator in place of two-port relief valves when there is return line pressure. All three-port sequence cartridges are interchangeable in terms of flow path and cavity size for a given frame size. The valve's pilot flow increases as the inlet pressure at port 1 rises above the setting relative to port 3. The RSBCLNV features a main stage orifice protected by a 150-micron stainless steel screen and has a minimum setting of 75 psi (5 bar) for all spring ranges. Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio, with an upper limit of 5000 psi (350 bar). It is not suitable for load-holding applications due to spool leakage. Cartridges configured with EPDM seals are intended for systems using phosphate ester fluids and should avoid contact with petroleum-based substances. This model utilizes Sun's floating style construction, which minimizes internal part binding risks due to excessive torque or machining variations. It has a capacity of 7.5 gpm (30 L/min) and operates up to a maximum pressure of 5000 psi (350 bar). The typical response time is around 10 ms, with maximum leakage rated at approximately 2 in\u00b3/min (30 cc/min) under specified conditions. The cartridge requires specific installation torques and adjustments detailed in its specifications, including an adjustment screw internal hex size of 5/32 inches and locknut torque specifications between 80-90 lbf\u00b7in (9-10 Nm).
Pilot-operated, balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Minimum setting is 75 psi (5 bar) for all spring ranges.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Not suitable for use in load holding applications due to spool leakage.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-163A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.30 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-163-006 |
