SUN HYDRAULICS
RSDCKAN
$83.39 USD
- SUN HYDRAULICS
- Material:RSDCKAN
- Model:RSDC-KAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

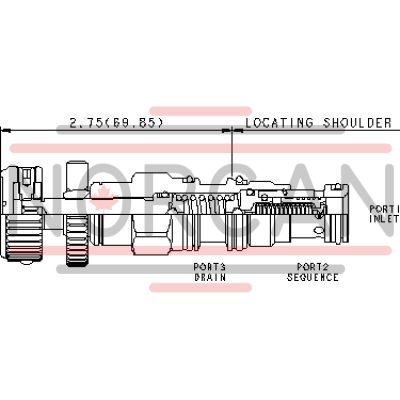

The Sun Hydraulics RSDCKAN (RSDCKAN) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the inlet port pressure exceeds the valve setting. This versatile valve manages pressure at port 1 relative to the drain port 3, remaining unaffected by back pressure at port 2 up to the valve setting. It can substitute 2-port relief valves in scenarios where return line pressure is present. The sequence cartridges are interchangeable, maintaining consistent flow paths and cavities for similar frame sizes. A key feature is its stainless steel screen-protected main stage orifice and a maximum operating pressure of 5000 psi (350 bar). Notably, this valve isn't suitable for load holding applications due to potential spool leakage. The RSDCKAN offers adjustable settings through W or Y controls and can be specified with or without a special setting, which determines the maximum valve setting. Corrosion-resistant variants are available, indicated by model code suffixes AP or LH for different protective coatings. The floating style construction minimizes internal binding risks due to installation torque or machining variations. This Series 1 cartridge has a capacity of 15 gpm (60 L/min) and factory pressure settings established at 4 gpm (15 L/min). It features a control pilot flow between 7-10 in\u00b3/min (0.11-0.16 L/min) with typical response times around 10 ms. Leakage rates at maximum conditions are minimal, ensuring efficient operation. Installation requires specific torque settings for both the valve and locknut components, with an adjustment screw internal hex size of 5/32 inches (4 mm). The cartridge's small weight of .30 lb (.15 kg) ensures ease of handling during installation and maintenance operations.
The Sun Hydraulics RSDCKAN (RSDCKAN) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the inlet port pressure exceeds the valve setting. This versatile valve manages pressure at port 1 relative to the drain port 3, remaining unaffected by back pressure at port 2 up to the valve setting. It can substitute 2-port relief valves in scenarios where return line pressure is present. The sequence cartridges are interchangeable, maintaining consistent flow paths and cavities for similar frame sizes. A key feature is its stainless steel screen-protected main stage orifice and a maximum operating pressure of 5000 psi (350 bar). Notably, this valve isn't suitable for load holding applications due to potential spool leakage. The RSDCKAN offers adjustable settings through W or Y controls and can be specified with or without a special setting, which determines the maximum valve setting. Corrosion-resistant variants are available, indicated by model code suffixes AP or LH for different protective coatings. The floating style construction minimizes internal binding risks due to installation torque or machining variations. This Series 1 cartridge has a capacity of 15 gpm (60 L/min) and factory pressure settings established at 4 gpm (15 L/min). It features a control pilot flow between 7-10 in\u00b3/min (0.11-0.16 L/min) with typical response times around 10 ms. Leakage rates at maximum conditions are minimal, ensuring efficient operation. Installation requires specific torque settings for both the valve and locknut components, with an adjustment screw internal hex size of 5/32 inches (4 mm). The cartridge's small weight of .30 lb (.15 kg) ensures ease of handling during installation and maintenance operations.
Pilot-operated, balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Not suitable for use in load holding applications due to spool leakage.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 7 - 10 in³/min.0,11 - 0,16 L/min. |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
Show FAQ
Additional Resources
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Sun Expands Corrosion-Resistant Solutions
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Sequence Valves Technical Tips
- Manufacturing Sun Cartridge Cavities
- Sequence Valves
- Sun Model Code Explanation; 999-901-334
- Cavity Information (S-171) and Tooling
- Cartridges: Materials of Construction
- Fluid and Temperature Recommendations
- Performance Data
- Sun's Floating Style Screw-In Cartridge
- Units of Measure, Settings, and Conversions
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
