SUN HYDRAULICS
RSDCLNN
$71.48 USD
- SUN HYDRAULICS
- Material:RSDCLNN
- Model:RSDC-LNN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

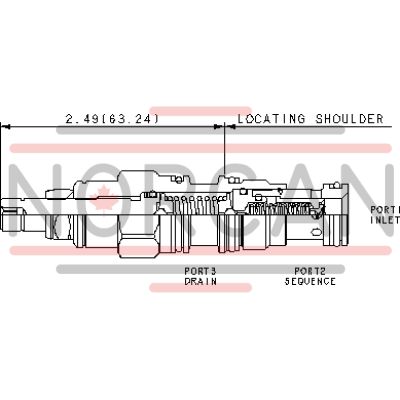

The Sun Hydraulics RSDCLNN (RSDCLNN) is a pilot-operated, balanced piston sequence valve designed to manage secondary circuit flow once the pressure at inlet port 1 surpasses the valve setting. This valve effectively regulates pressure at port 1 relative to the pressure at drain port 3, remaining unaffected by back pressure at port 2 until reaching the valve setting. It serves as an alternative to two-port relief valves in scenarios where there is pressure in the return line. The RSDCLNN model features interchangeable three-port sequence cartridges, ensuring compatibility in flow path and cavity for a given frame size. The pilot flow of this valve increases as the inlet pressure at port 1 rises above the valve setting relative to drain port 3. The main stage orifice is safeguarded by a robust 150-micron stainless steel screen, and it is crucial that pressure at port 3 does not exceed 5000 psi (350 bar), as it directly influences the valve setting on a 1:1 ratio. This model is unsuitable for load holding applications due to spool leakage but offers adjustable settings throughout its range using W or Y controls unless a special maximum setting is specified. Designed for use in corrosive environments, corrosion-resistant options include external stainless steel components (suffix AP) or zinc-nickel plating (suffix LH). The Sun floating style construction minimizes internal part binding due to excessive torque or machining variations. Key specifications include a T-11A cavity series with a capacity of up to 15 gpm (60 L/min), maximum operating pressure of 5000 psi (350 bar), and control pilot flow between 7 - 10 in\u00b3/min (0.11 - 0.16 L/min). The typical response time is approximately 10 ms with maximum valve leakage of about 2 in\u00b3/min at specific conditions.
The Sun Hydraulics RSDCLNN (RSDCLNN) is a pilot-operated, balanced piston sequence valve designed to manage secondary circuit flow once the pressure at inlet port 1 surpasses the valve setting. This valve effectively regulates pressure at port 1 relative to the pressure at drain port 3, remaining unaffected by back pressure at port 2 until reaching the valve setting. It serves as an alternative to two-port relief valves in scenarios where there is pressure in the return line. The RSDCLNN model features interchangeable three-port sequence cartridges, ensuring compatibility in flow path and cavity for a given frame size. The pilot flow of this valve increases as the inlet pressure at port 1 rises above the valve setting relative to drain port 3. The main stage orifice is safeguarded by a robust 150-micron stainless steel screen, and it is crucial that pressure at port 3 does not exceed 5000 psi (350 bar), as it directly influences the valve setting on a 1:1 ratio. This model is unsuitable for load holding applications due to spool leakage but offers adjustable settings throughout its range using W or Y controls unless a special maximum setting is specified. Designed for use in corrosive environments, corrosion-resistant options include external stainless steel components (suffix AP) or zinc-nickel plating (suffix LH). The Sun floating style construction minimizes internal part binding due to excessive torque or machining variations. Key specifications include a T-11A cavity series with a capacity of up to 15 gpm (60 L/min), maximum operating pressure of 5000 psi (350 bar), and control pilot flow between 7 - 10 in\u00b3/min (0.11 - 0.16 L/min). The typical response time is approximately 10 ms with maximum valve leakage of about 2 in\u00b3/min at specific conditions.
Pilot-operated, balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Not suitable for use in load holding applications due to spool leakage.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 7 - 10 in³/min.0,11 - 0,16 L/min. |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
Show FAQ
Additional Resources
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Sun Expands Corrosion-Resistant Solutions
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Sequence Valves Technical Tips
- Manufacturing Sun Cartridge Cavities
- Sequence Valves
- Sun Model Code Explanation; 999-901-334
- Cavity Information (S-171) and Tooling
- Cartridges: Materials of Construction
- Fluid and Temperature Recommendations
- Performance Data
- Sun's Floating Style Screw-In Cartridge
- Units of Measure, Settings, and Conversions
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
