SUN HYDRAULICS
RSDCMAN
$73.47 USD
- SUN HYDRAULICS
- Material:RSDCMAN
- Model:RSDC-MAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

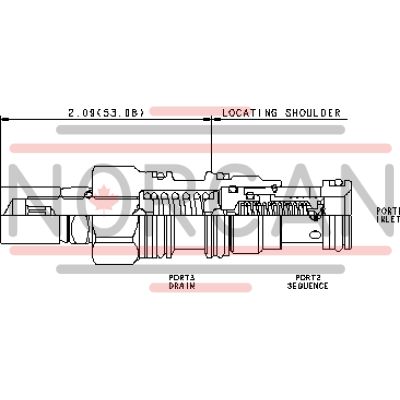

The Sun Hydraulics RSDCMAN (RSDCMAN) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 surpasses the valve setting. It effectively controls the pressure at port 1 relative to the drain port 3, remaining unaffected by back pressure at port 2 up to the valve setting. These valves can replace 2-port relief valves for pressure regulation if there's pressure in the return line. The design ensures all 3-port sequence cartridges are interchangeable in terms of flow path and cavity size for a given frame size. The main stage orifice is safeguarded by a durable 150-micron stainless steel screen, and the valve accommodates pressures at port 3 up to a maximum of 5000 psi (350 bar), which directly adds to the valve setting in a 1:1 ratio. However, they are not suitable for load-holding applications due to spool leakage. The RSDCMAN model features corrosion-resistant options identified by suffixes AP or LH for external stainless steel or zinc-nickel plated components, respectively. It incorporates Sun's floating style construction, minimizing risks of internal parts binding from excessive installation torque or machining variations. With a cavity T-11A series and capacity of 15 gpm (60 L/min), it operates under maximum pressures of 5000 psi (350 bar) with factory settings established at flows of 4 gpm (15 L/min). Control pilot flow ranges from 7-10 in\u00b3/min (0.11-0.16 L/min), with typical response times around 10 ms and maximum leakage rates at specified conditions being minimal. Adjustments can be made using W or Y controls, allowing full-range adjustments unless specified otherwise for special settings. Installation requires specific torque values and hex sizes for optimal performance and security against leaks or malfunctions.
The Sun Hydraulics RSDCMAN (RSDCMAN) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 surpasses the valve setting. It effectively controls the pressure at port 1 relative to the drain port 3, remaining unaffected by back pressure at port 2 up to the valve setting. These valves can replace 2-port relief valves for pressure regulation if there's pressure in the return line. The design ensures all 3-port sequence cartridges are interchangeable in terms of flow path and cavity size for a given frame size. The main stage orifice is safeguarded by a durable 150-micron stainless steel screen, and the valve accommodates pressures at port 3 up to a maximum of 5000 psi (350 bar), which directly adds to the valve setting in a 1:1 ratio. However, they are not suitable for load-holding applications due to spool leakage. The RSDCMAN model features corrosion-resistant options identified by suffixes AP or LH for external stainless steel or zinc-nickel plated components, respectively. It incorporates Sun's floating style construction, minimizing risks of internal parts binding from excessive installation torque or machining variations. With a cavity T-11A series and capacity of 15 gpm (60 L/min), it operates under maximum pressures of 5000 psi (350 bar) with factory settings established at flows of 4 gpm (15 L/min). Control pilot flow ranges from 7-10 in\u00b3/min (0.11-0.16 L/min), with typical response times around 10 ms and maximum leakage rates at specified conditions being minimal. Adjustments can be made using W or Y controls, allowing full-range adjustments unless specified otherwise for special settings. Installation requires specific torque values and hex sizes for optimal performance and security against leaks or malfunctions.
Pilot-operated, balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Not suitable for use in load holding applications due to spool leakage.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 7 - 10 in³/min.0,11 - 0,16 L/min. |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
