SUN HYDRAULICS
RSDCMQV
$83.39 USD
- SUN HYDRAULICS
- Material:RSDCMQV
- Model:RSDC-MQV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

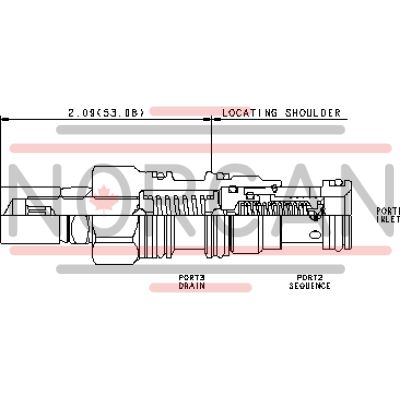

The Sun Hydraulics RSDCMQV (RSDCMQV) is a pilot-operated, balanced piston sequence valve designed to manage flow in secondary circuits once the inlet port 1 pressure surpasses a predetermined threshold. This valve regulates pressure at port 1 relative to the drain port 3 and remains unaffected by back pressure at port 2 up to its set point, distinguishing it from typical two-port relief valves when return line pressure is present. The RSDCMQV model ensures interchangeability across all three-port sequence cartridges, maintaining consistent flow path and cavity dimensions for a given frame size. Notably, it features a main stage orifice shielded by a 150-micron stainless steel screen and supports pressures up to 5000 psi (350 bar). However, it is unsuitable for load-holding applications due to potential spool leakage. The valve's control options include W and Y settings, adjustable throughout their range unless specified otherwise for maximum settings. For environments prone to corrosion, external components can be customized with stainless steel or zinc-nickel plating, denoted by suffixes AP or LH in the model code. The floating style construction of this cartridge minimizes internal binding risks caused by excessive installation torque or machining variances. Key specifications include a T-11A cavity series with a capacity of 15 gpm (60 L/min), factory pressure settings established at 4 gpm (15 L/min), maximum operating pressure of 5000 psi (350 bar), control pilot flow between 7 - 10 in\u00b3/min (0.11 - 0.16 L/min), and typical response time of 10 ms. The valve exhibits minimal leakage at specified conditions and allows adjustment through clockwise turns with specific torque requirements for installation and locknut adjustments.
The Sun Hydraulics RSDCMQV (RSDCMQV) is a pilot-operated, balanced piston sequence valve designed to manage flow in secondary circuits once the inlet port 1 pressure surpasses a predetermined threshold. This valve regulates pressure at port 1 relative to the drain port 3 and remains unaffected by back pressure at port 2 up to its set point, distinguishing it from typical two-port relief valves when return line pressure is present. The RSDCMQV model ensures interchangeability across all three-port sequence cartridges, maintaining consistent flow path and cavity dimensions for a given frame size. Notably, it features a main stage orifice shielded by a 150-micron stainless steel screen and supports pressures up to 5000 psi (350 bar). However, it is unsuitable for load-holding applications due to potential spool leakage. The valve's control options include W and Y settings, adjustable throughout their range unless specified otherwise for maximum settings. For environments prone to corrosion, external components can be customized with stainless steel or zinc-nickel plating, denoted by suffixes AP or LH in the model code. The floating style construction of this cartridge minimizes internal binding risks caused by excessive installation torque or machining variances. Key specifications include a T-11A cavity series with a capacity of 15 gpm (60 L/min), factory pressure settings established at 4 gpm (15 L/min), maximum operating pressure of 5000 psi (350 bar), control pilot flow between 7 - 10 in\u00b3/min (0.11 - 0.16 L/min), and typical response time of 10 ms. The valve exhibits minimal leakage at specified conditions and allows adjustment through clockwise turns with specific torque requirements for installation and locknut adjustments.
Pilot-operated, balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Not suitable for use in load holding applications due to spool leakage.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 7 - 10 in³/min.0,11 - 0,16 L/min. |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
Show FAQ
Additional Resources
- Sequence Valves Technical Tips
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Sun Expands Corrosion-Resistant Solutions
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Manufacturing Sun Cartridge Cavities
- Sequence Valves
- Sun's Floating Style Screw-In Cartridge
- Units of Measure, Settings, and Conversions
- Sun Model Code Explanation; 999-901-334
- Cavity Information (S-171) and Tooling
- Cartridges: Materials of Construction
- Fluid and Temperature Recommendations
- Performance Data
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
