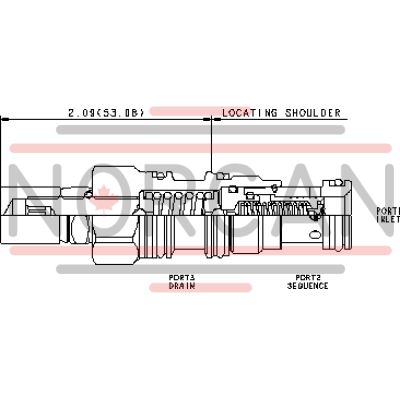

The Sun Hydraulics RSDCMWV (RSDCMWV) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the inlet pressure at port 1 surpasses the valve setting. This valve effectively controls the pressure at port 1 in relation to the drain port 3, remaining unaffected by back pressure at port 2 up to the valve setting. It can also regulate pressure in place of two-port relief valves when there is return line pressure. The three-port sequence cartridges are interchangeable, offering consistent flow paths and cavity compatibility for a given frame size. As inlet pressure at port 1 increases relative to drain pressure at port 3 beyond the set point, pilot flow continues to rise. The main stage orifice features a protective 150-micron stainless steel screen, ensuring durability and performance. The Sun Hydraulics RSDCMWV is not suitable for load holding applications due to spool leakage but provides corrosion-resistant options with external stainless steel or zinc-nickel plated components. It incorporates Sun's floating style construction, minimizing internal part binding risks due to excessive installation torque or cavity machining variations. The valve has a capacity of 15 gpm (60 L/min) and operates under a maximum pressure of 5000 psi (350 bar). It features an adjustable range using W or Y controls with optional special settings for maximum adjustment limits. The RSDCMWV model weighs approximately .30 lb (.15 kg) and comes with specific installation requirements such as a valve hex size of .78 inches (22.2 mm) and an installation torque between 30-35 lbf ft (41-47 Nm). The adjustment screw has an internal hex size of .532 inches (4 mm), while the locknut requires a hex size of .916 inches (15 mm) with a torque specification of 80-90 lbf in (9-10 Nm).
The Sun Hydraulics RSDCMWV (RSDCMWV) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the inlet pressure at port 1 surpasses the valve setting. This valve effectively controls the pressure at port 1 in relation to the drain port 3, remaining unaffected by back pressure at port 2 up to the valve setting. It can also regulate pressure in place of two-port relief valves when there is return line pressure. The three-port sequence cartridges are interchangeable, offering consistent flow paths and cavity compatibility for a given frame size. As inlet pressure at port 1 increases relative to drain pressure at port 3 beyond the set point, pilot flow continues to rise. The main stage orifice features a protective 150-micron stainless steel screen, ensuring durability and performance. The Sun Hydraulics RSDCMWV is not suitable for load holding applications due to spool leakage but provides corrosion-resistant options with external stainless steel or zinc-nickel plated components. It incorporates Sun's floating style construction, minimizing internal part binding risks due to excessive installation torque or cavity machining variations. The valve has a capacity of 15 gpm (60 L/min) and operates under a maximum pressure of 5000 psi (350 bar). It features an adjustable range using W or Y controls with optional special settings for maximum adjustment limits. The RSDCMWV model weighs approximately .30 lb (.15 kg) and comes with specific installation requirements such as a valve hex size of .78 inches (22.2 mm) and an installation torque between 30-35 lbf ft (41-47 Nm). The adjustment screw has an internal hex size of .532 inches (4 mm), while the locknut requires a hex size of .916 inches (15 mm) with a torque specification of 80-90 lbf in (9-10 Nm).
Pilot-operated, balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Not suitable for use in load holding applications due to spool leakage.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 7 - 10 in³/min.0,11 - 0,16 L/min. |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
