RSDS8DV
$120.73 USD
- SUN HYDRAULICS
- Material:RSDS8DV
- Model:RSDS-8DV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

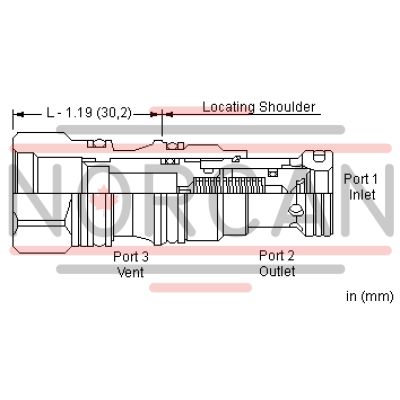

The Sun Hydraulics RSDS8DV (RSDS8DV) is a normally closed poppet valve designed with an integral pilot control cavity, making it suitable for applications requiring precise pressure regulation. This valve features an externally drained, balanced poppet design and can accommodate any T8A pressure control cartridge within its pilot control cavity. When the inlet port 1 pressure reaches the pilot control cartridge's set point, the poppet element begins to open towards port 2, allowing throttled flow to manage pressure effectively. Notably, this valve is insensitive to back pressure at port 2 up to its set value and can be employed in place of two-port relief valves if there is return line pressure present. The RSDS8DV valve offers functional interchangeability among all three-port sequence cartridges of similar frame sizes, ensuring ease of integration into existing systems. As the inlet pressure at port 1 surpasses the set point relative to drain port 3, pilot flow increases accordingly. The main stage orifice is safeguarded by a robust 150-micron stainless steel screen. Pressure at port 3 contributes directly to the valve setting in a 1:1 ratio and should not exceed a maximum of 5000 psi (350 bar). Proper installation requires sequential torque application: first on the main stage valve followed by the T8A pilot control valve. The internal modulation within the cartridge makes these valves resistant to issues like cavitation-induced noise and manifold erosion. The RSDS8DV model supports maximum pressure at port 2 and is apt for cross-port relief circuits. It incorporates Sun's floating style construction to reduce risks of internal part binding due to excessive installation torque or machining variations in cavity/cartridge configurations. With a capacity of 15 gpm (60 L/min) and a typical response time of 10 ms, this model is engineered for high performance under demanding conditions.
The Sun Hydraulics RSDS8DV (RSDS8DV) is a normally closed poppet valve designed with an integral pilot control cavity, making it suitable for applications requiring precise pressure regulation. This valve features an externally drained, balanced poppet design and can accommodate any T8A pressure control cartridge within its pilot control cavity. When the inlet port 1 pressure reaches the pilot control cartridge's set point, the poppet element begins to open towards port 2, allowing throttled flow to manage pressure effectively. Notably, this valve is insensitive to back pressure at port 2 up to its set value and can be employed in place of two-port relief valves if there is return line pressure present. The RSDS8DV valve offers functional interchangeability among all three-port sequence cartridges of similar frame sizes, ensuring ease of integration into existing systems. As the inlet pressure at port 1 surpasses the set point relative to drain port 3, pilot flow increases accordingly. The main stage orifice is safeguarded by a robust 150-micron stainless steel screen. Pressure at port 3 contributes directly to the valve setting in a 1:1 ratio and should not exceed a maximum of 5000 psi (350 bar). Proper installation requires sequential torque application: first on the main stage valve followed by the T8A pilot control valve. The internal modulation within the cartridge makes these valves resistant to issues like cavitation-induced noise and manifold erosion. The RSDS8DV model supports maximum pressure at port 2 and is apt for cross-port relief circuits. It incorporates Sun's floating style construction to reduce risks of internal part binding due to excessive installation torque or machining variations in cavity/cartridge configurations. With a capacity of 15 gpm (60 L/min) and a typical response time of 10 ms, this model is engineered for high performance under demanding conditions.
This valve is a normally closed poppet element that incorporates an integral pilot control cavity. It is externally drained, and is a balanced poppet design. The pilot control cavity will accept any T-8A pressure control cartridge. When the pressure at the inlet (port 1) reaches the pilot control cartridge's setting, the poppet element starts to open to port 2, throttling flow to regulate the pressure. The pilot cartridge's setting determines the difference in pressure between the inlet (port 1) and the drain (port 3). These valves are insensitive to back pressure at port 2, up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- NOTE: With the -8 control option, the main stage valve should first be installed to the correct torque value. The T-8A pilot control valve should then be installed into the main stage valve to its required torque value.
- Because the modulating occurs inside the cartridge these valves are immune to most of the problems associated with cavitation, namely noise and manifold erosion.
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 7 - 10 in³/min.0,11 - 0,16 L/min. |
| Response Time - Typical | 10 ms10 ms |
| Pilot Control Cavity | T-8AT-8A |
| Pilot Control Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Pilot Control Valve Hex Size | 7/8 in.22,2 mm |
| Main stage leakage at reseat | 10 drops/min.0,7 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
