SUN HYDRAULICS
RSDSCAV
$118.84 USD
- SUN HYDRAULICS
- Material:RSDSCAV
- Model:RSDS-CAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

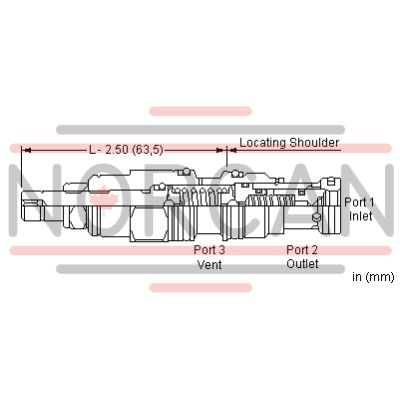

The Sun Hydraulics RSDSCAV (RSDSCAV) is a pilot-operated, balanced poppet sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This valve regulates pressure at port 1 relative to the drain port 3 and remains insensitive to back pressure at port 2 up to the valve setting, making it suitable for load holding applications and cross-port relief circuits. The RSDSCAV features interchangeable three-port sequence cartridges with consistent flow paths and cavity sizes, ensuring versatility in various applications. It incorporates a main stage orifice protected by a 150-micron stainless steel screen and supports maximum operating pressures of up to 5000 psi (350 bar). The design includes Sun's floating style construction, minimizing internal part binding due to excessive installation torque or machining variations. With a capacity of 15 gpm (60 L/min) and typical response time of 10 ms, this valve is efficient in performance. The maximum valve leakage at reseat is limited to 10 drops per minute (0.7 cc/min), ensuring minimal fluid loss. Adjustment is facilitated by five full clockwise turns to increase settings, with specific torque requirements for both the valve installation and locknut hex sizes. The RSDSCAV's robust design makes it immune to cavitation-related issues such as noise and manifold erosion, enhancing its reliability across demanding hydraulic systems.
The Sun Hydraulics RSDSCAV (RSDSCAV) is a pilot-operated, balanced poppet sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This valve regulates pressure at port 1 relative to the drain port 3 and remains insensitive to back pressure at port 2 up to the valve setting, making it suitable for load holding applications and cross-port relief circuits. The RSDSCAV features interchangeable three-port sequence cartridges with consistent flow paths and cavity sizes, ensuring versatility in various applications. It incorporates a main stage orifice protected by a 150-micron stainless steel screen and supports maximum operating pressures of up to 5000 psi (350 bar). The design includes Sun's floating style construction, minimizing internal part binding due to excessive installation torque or machining variations. With a capacity of 15 gpm (60 L/min) and typical response time of 10 ms, this valve is efficient in performance. The maximum valve leakage at reseat is limited to 10 drops per minute (0.7 cc/min), ensuring minimal fluid loss. Adjustment is facilitated by five full clockwise turns to increase settings, with specific torque requirements for both the valve installation and locknut hex sizes. The RSDSCAV's robust design makes it immune to cavitation-related issues such as noise and manifold erosion, enhancing its reliability across demanding hydraulic systems.
Pilot-operated, balanced poppet sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Suitable for use in load holding applications.
- Because the modulating occurs inside the cartridge these valves are immune to most of the problems associated with cavitation, namely noise and manifold erosion.
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at Reseat | 10 drops/min.0,7 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
