SUN HYDRAULICS
RSDSCNV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

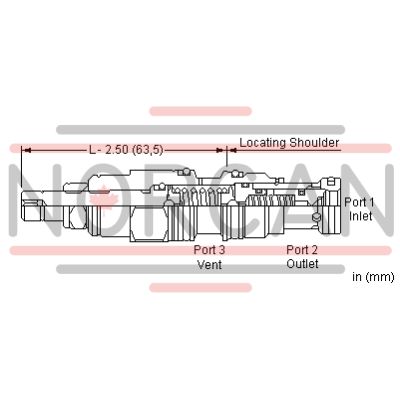

The Sun Hydraulics RSDSCNV (RSDSCNV) is a pilot-operated, balanced poppet sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This valve effectively controls the pressure at port 1 in relation to the drain port 3 and remains unaffected by back pressure at port 2, up to the valve setting. It can regulate pressure similarly to 2-port relief valves when there is return line pressure. All three-port sequence cartridges are interchangeable in terms of flow path and cavity for a given frame size, offering versatility in application. The valve features a main stage orifice protected by a 150-micron stainless steel screen and can handle pressures at port 3 up to 5000 psi (350 bar), which are directly additive to the valve setting at a 1:1 ratio. This makes it suitable for load-holding applications. The RSDSCNV is immune to cavitation-related issues such as noise and manifold erosion due to its internal modulation mechanism. It accommodates maximum pressure at port 2, making it apt for use in cross-port relief circuits. The Sun floating style construction minimizes binding risks from excessive installation torque or machining variations. With a capacity of 15 gpm (60 L/min) and maximum operating pressure of 5000 psi (350 bar), this model ensures reliable performance with typical response times around 10 ms and minimal leakage upon reseat. Installation requires specific torque settings for both the valve and locknut, ensuring secure placement. Additionally, it includes Viton seal kits for enhanced durability under various conditions.
