SUN HYDRAULICS
RSDSLBV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

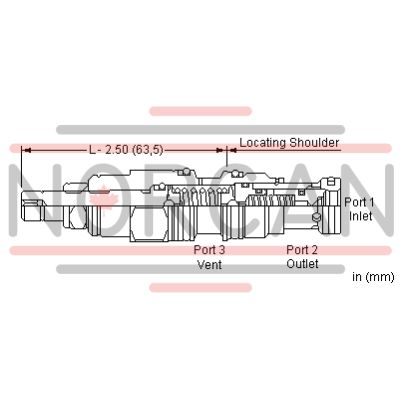

The Sun Hydraulics RSDSLBV (RSDSLBV) is a pilot-operated, balanced poppet sequence valve designed to supply a secondary circuit with flow once the pressure at the inlet port 1 exceeds the valve setting. This valve effectively controls the pressure at port 1 relative to the pressure at the drain port 3, remaining insensitive to back pressure at port 2 up to the set valve pressure. It can regulate pressure in place of two-port relief valves when there is return line pressure. All three-port sequence cartridges are interchangeable, sharing the same flow path and cavity for a given frame size. The pilot flow increases as inlet pressure rises above the valve setting relative to drain pressure. A 150-micron stainless steel screen protects the main stage orifice, and the maximum allowable pressure at port 3 should not exceed 5000 psi (350 bar), which adds directly to the valve setting at a 1:1 ratio. This makes it suitable for load-holding applications and immune to cavitation-related issues like noise and manifold erosion due to internal modulating within the cartridge. The RSDSLBV accepts maximum pressure at port 2 and is suitable for cross-port relief circuits, featuring Sun's floating style construction that minimizes binding risks due to excessive installation torque or machining variations. It has a capacity of 15 gpm (60 L/min) with factory settings established at 4 gpm (15 L/min). The response time is typically around 10 ms with maximum operating pressures reaching up to 5000 psi (350 bar). Maximum valve leakage upon reseating is limited to 10 drops/min (0.7 cc/min), and adjustment involves five clockwise turns to increase settings. Installation requires specific torque values for both valve hex size and locknut hex size, ensuring secure placement and optimal performance in hydraulic systems.
