SUN HYDRAULICS
RSDSLCV
$113.88 USD
- SUN HYDRAULICS
- Material:RSDSLCV
- Model:RSDS-LCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RSDSLCV (RSDSLCV) is a pilot-operated, balanced poppet sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This versatile component is particularly suitable for load holding applications and can be used in place of 2-port relief valves where there is pressure in the return line. With a maximum operating pressure of 5000 psi (350 bar), it ensures reliable performance even under demanding conditions. The valve features a 150-micron stainless steel screen to protect the main stage orifice and incorporates Sun's floating style construction to minimize internal binding due to installation torque or machining variations. It offers functional interchangeability across all 3-port sequence cartridges, maintaining the same flow path and cavity for a given frame size. The RSDSLCV is also capable of handling maximum pressure at port 2, making it suitable for cross-port relief circuits. Adjustments can be made with up to 5.5 clockwise turns to increase the setting, and it has a typical response time of 10 ms. The valve's design minimizes issues associated with cavitation such as noise and manifold erosion, ensuring smooth operation across various applications.
The Sun Hydraulics RSDSLCV (RSDSLCV) is a pilot-operated, balanced poppet sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This versatile component is particularly suitable for load holding applications and can be used in place of 2-port relief valves where there is pressure in the return line. With a maximum operating pressure of 5000 psi (350 bar), it ensures reliable performance even under demanding conditions. The valve features a 150-micron stainless steel screen to protect the main stage orifice and incorporates Sun's floating style construction to minimize internal binding due to installation torque or machining variations. It offers functional interchangeability across all 3-port sequence cartridges, maintaining the same flow path and cavity for a given frame size. The RSDSLCV is also capable of handling maximum pressure at port 2, making it suitable for cross-port relief circuits. Adjustments can be made with up to 5.5 clockwise turns to increase the setting, and it has a typical response time of 10 ms. The valve's design minimizes issues associated with cavitation such as noise and manifold erosion, ensuring smooth operation across various applications.

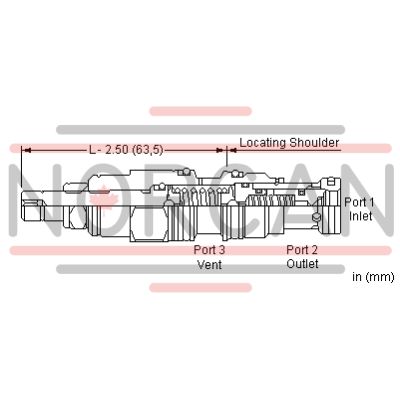

Pilot-operated, balanced poppet sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Suitable for use in load holding applications.
- Because the modulating occurs inside the cartridge these valves are immune to most of the problems associated with cavitation, namely noise and manifold erosion.
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at Reseat | 10 drops/min.0,7 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
