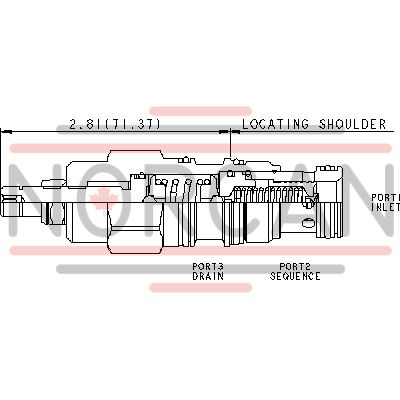

The Sun Hydraulics RSFCLNN (RSFCLNN) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the inlet port 1 pressure exceeds the valve setting. This valve controls pressure at port 1 relative to the drain port 3 and remains unaffected by back pressure at port 2 up to the valve setting. It can substitute for 2-port relief valves in situations where there is pressure in the return line. The RSFCLNN model features interchangeable three-port sequence cartridges, ensuring compatibility in terms of flow path and cavity for a given frame size. As inlet pressure at port 1 rises above the valve setting relative to drain pressure at port 3, pilot flow increases. The main stage orifice is safeguarded by a 150-micron stainless steel screen, while pressure at port 3 directly adds to the valve setting at a ratio of 1:1, with a maximum limit of 5000 psi (350 bar). This model is unsuitable for load-holding applications due to spool leakage but offers adjustable settings via W and Y controls unless specified otherwise. Cartridges with EPDM seals are intended for phosphate ester fluid systems and should avoid petroleum-based fluids. The Sun floating style construction minimizes internal part binding risks due to excessive installation torque or machining variations. Additional specifications include a T-2A cavity series, capacity of 30 gpm (120 L/min), factory pressure settings established at 4 gpm (15 L/min), maximum operating pressure of 5000 psi (350 bar), control pilot flow between 10-15 in\u00b3/min (0.16-0.25 L/min), typical response time of about 10 ms, and maximum valve leakage at specified conditions of approximately 3 in\u00b3/min (50 cc/min). The adjustment screw requires an internal hex size of 5/32 inches (4 mm) with locknut torque set between 80-90 lbf-in (9-10 Nm).
