SUN HYDRAULICS
RSFCLQV
$114.67 USD
- SUN HYDRAULICS
- Material:RSFCLQV
- Model:RSFC-LQV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

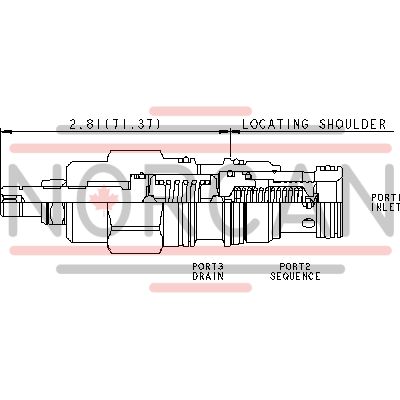

The Sun Hydraulics RSFCLQV (Material Number: RSFCLQV) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the pressure at the inlet port 1 exceeds the valve setting. This valve is specifically engineered to control the pressure at port 1 relative to the pressure at the drain port 3 and is insensitive to back pressure at port 2 up to the valve setting. Notably, it can serve as an alternative to 2-port relief valves in systems with return line pressure. All three-port sequence cartridges from Sun Hydraulics are interchangeable, maintaining identical flow paths and cavity configurations for a given frame size. The RSFCLQV features a main stage orifice protected by a 150-micron stainless steel screen and incorporates Sun's floating style construction to prevent internal parts binding due to excessive installation torque or machining variations. The valve has a maximum operating pressure of 5000 psi (350 bar) and a capacity of 30 gpm (120 L/min). It includes an adjustment range controlled by W or Y controls, which can be set throughout its full range unless specified otherwise. The cartridge is not suitable for load holding applications due to potential spool leakage. Cartridges with EPDM seals are compatible with phosphate ester fluids but are susceptible to damage from petroleum-based substances. The RSFCLQV also features specific installation requirements such as a valve hex size of 1-1/8 inches (28.6 mm) and an installation torque of 45-50 lbf ft (61-68 Nm). Additionally, it has an adjustment screw internal hex size of 5/32 inches (4 mm) and locknut torque specifications of 80-90 lbf in (9-10 Nm).
The Sun Hydraulics RSFCLQV (Material Number: RSFCLQV) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the pressure at the inlet port 1 exceeds the valve setting. This valve is specifically engineered to control the pressure at port 1 relative to the pressure at the drain port 3 and is insensitive to back pressure at port 2 up to the valve setting. Notably, it can serve as an alternative to 2-port relief valves in systems with return line pressure. All three-port sequence cartridges from Sun Hydraulics are interchangeable, maintaining identical flow paths and cavity configurations for a given frame size. The RSFCLQV features a main stage orifice protected by a 150-micron stainless steel screen and incorporates Sun's floating style construction to prevent internal parts binding due to excessive installation torque or machining variations. The valve has a maximum operating pressure of 5000 psi (350 bar) and a capacity of 30 gpm (120 L/min). It includes an adjustment range controlled by W or Y controls, which can be set throughout its full range unless specified otherwise. The cartridge is not suitable for load holding applications due to potential spool leakage. Cartridges with EPDM seals are compatible with phosphate ester fluids but are susceptible to damage from petroleum-based substances. The RSFCLQV also features specific installation requirements such as a valve hex size of 1-1/8 inches (28.6 mm) and an installation torque of 45-50 lbf ft (61-68 Nm). Additionally, it has an adjustment screw internal hex size of 5/32 inches (4 mm) and locknut torque specifications of 80-90 lbf in (9-10 Nm).
Pilot-operated, balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Not suitable for use in load holding applications due to spool leakage.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 10 - 15 in³/min.0,16 - 0,25 L/min. |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .50 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-202-006 |
Show FAQ
Additional Resources
- Sequence Valves Technical Tips
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Sun Expands Corrosion-Resistant Solutions
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Manufacturing Sun Cartridge Cavities
- Sequence Valves
- Sun's Floating Style Screw-In Cartridge
- Units of Measure, Settings, and Conversions
- Sun Model Code Explanation; 999-901-334
- Cavity Information (S-171) and Tooling
- Cartridges: Materials of Construction
- Fluid and Temperature Recommendations
- Performance Data
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
