The Sun Hydraulics RSFCLWN (RSFCLWN) is a pilot-operated, balanced piston sequence valve designed to manage fluid flow in hydraulic systems by activating a secondary circuit once the pressure at the inlet port exceeds the valve's set threshold. This valve maintains control of pressure at port 1 in relation to the drain port 3, remaining unaffected by back pressure at port 2 until reaching the valve setting. It can substitute for two-port relief valves when there is pressure in the return line. The RSFCLWN model is functionally interchangeable with all three-port sequence cartridges, sharing identical flow paths and cavity dimensions for its frame size. It features a main stage orifice shielded by a 150-micron stainless steel screen and can handle pressures up to 5000 psi (350 bar) at port 3, which directly add to the valve setting at a 1:1 ratio. This model is not recommended for load-holding applications due to potential spool leakage. The RSFCLWN allows for adjustable settings using W or Y controls, with or without special settings that define maximum thresholds. Cartridges fitted with EPDM seals are compatible with phosphate ester fluids but are susceptible to damage from petroleum-based substances. The floating style construction minimizes risks of internal binding during installation or due to machining variations. Key specifications include a capacity of 30 gpm (120 L/min), factory pressure settings established at 4 gpm (15 L/min), and maximum operating pressure of 5000 psi (350 bar). The response time is typically around 10 ms, with maximum leakage limited to 3 in\u00b3/min at 1000 psi (50 cc/min at 70 bar). Installation requires specific torque values and hex sizes for adjustments and locknuts, ensuring secure setup and reliable operation within hydraulic systems.
The Sun Hydraulics RSFCLWN (RSFCLWN) is a pilot-operated, balanced piston sequence valve designed to manage fluid flow in hydraulic systems by activating a secondary circuit once the pressure at the inlet port exceeds the valve's set threshold. This valve maintains control of pressure at port 1 in relation to the drain port 3, remaining unaffected by back pressure at port 2 until reaching the valve setting. It can substitute for two-port relief valves when there is pressure in the return line. The RSFCLWN model is functionally interchangeable with all three-port sequence cartridges, sharing identical flow paths and cavity dimensions for its frame size. It features a main stage orifice shielded by a 150-micron stainless steel screen and can handle pressures up to 5000 psi (350 bar) at port 3, which directly add to the valve setting at a 1:1 ratio. This model is not recommended for load-holding applications due to potential spool leakage. The RSFCLWN allows for adjustable settings using W or Y controls, with or without special settings that define maximum thresholds. Cartridges fitted with EPDM seals are compatible with phosphate ester fluids but are susceptible to damage from petroleum-based substances. The floating style construction minimizes risks of internal binding during installation or due to machining variations. Key specifications include a capacity of 30 gpm (120 L/min), factory pressure settings established at 4 gpm (15 L/min), and maximum operating pressure of 5000 psi (350 bar). The response time is typically around 10 ms, with maximum leakage limited to 3 in\u00b3/min at 1000 psi (50 cc/min at 70 bar). Installation requires specific torque values and hex sizes for adjustments and locknuts, ensuring secure setup and reliable operation within hydraulic systems.

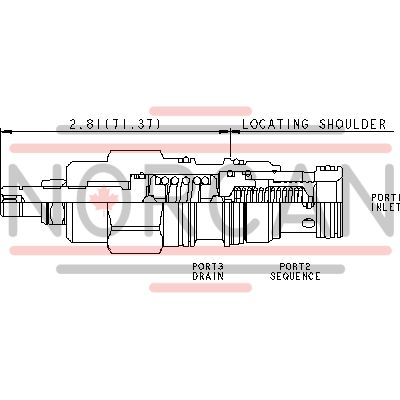

Pilot-operated, balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Not suitable for use in load holding applications due to spool leakage.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 10 - 15 in³/min.0,16 - 0,25 L/min. |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .50 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-202-006 |
