SUN HYDRAULICS
RSFCOCN
$123.61 USD
- SUN HYDRAULICS
- Material:RSFCOCN
- Model:RSFC-OCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RSFCOCN (RSFCOCN) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 surpasses the valve's setting. This sequence valve controls the pressure at port 1 in relation to the drain port 3, remaining unaffected by back pressure at port 2 up to the valve setting. It can serve as a substitute for two-port relief valves when there is return line pressure. The valve's design includes a main stage orifice shielded by a 150-micron stainless steel screen and features Sun's floating style construction to reduce internal binding risks due to installation torque or machining variations. This model is not suitable for load-holding applications due to spool leakage and allows for continuous pilot flow increase as pressure at port 1 rises above the setting relative to port 3. The RSFCOCN has a maximum operating pressure of 5000 psi (350 bar) and is adjustable throughout its full range using W or Y controls unless specified otherwise. Cartridges equipped with EPDM seals are intended for phosphate ester fluid systems, as exposure to petroleum-based substances can cause seal damage. The RSFCOCN has physical and functional interchangeability with all three-port sequence cartridges of similar frame size, meaning they share the same flow path and cavity specifications. Its capacity reaches up to 30 gpm (120 L/min), with factory pressure settings established at 4 gpm (15 L/min). The response time is typically around 10 ms, and maximum valve leakage at 110 SUS (24 cSt) is approximately 3 in\u00b3/min (50 cc/min) at 1000 psi (70 bar). Installation requires specific torque values for both the valve itself and its locknut components.
The Sun Hydraulics RSFCOCN (RSFCOCN) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 surpasses the valve's setting. This sequence valve controls the pressure at port 1 in relation to the drain port 3, remaining unaffected by back pressure at port 2 up to the valve setting. It can serve as a substitute for two-port relief valves when there is return line pressure. The valve's design includes a main stage orifice shielded by a 150-micron stainless steel screen and features Sun's floating style construction to reduce internal binding risks due to installation torque or machining variations. This model is not suitable for load-holding applications due to spool leakage and allows for continuous pilot flow increase as pressure at port 1 rises above the setting relative to port 3. The RSFCOCN has a maximum operating pressure of 5000 psi (350 bar) and is adjustable throughout its full range using W or Y controls unless specified otherwise. Cartridges equipped with EPDM seals are intended for phosphate ester fluid systems, as exposure to petroleum-based substances can cause seal damage. The RSFCOCN has physical and functional interchangeability with all three-port sequence cartridges of similar frame size, meaning they share the same flow path and cavity specifications. Its capacity reaches up to 30 gpm (120 L/min), with factory pressure settings established at 4 gpm (15 L/min). The response time is typically around 10 ms, and maximum valve leakage at 110 SUS (24 cSt) is approximately 3 in\u00b3/min (50 cc/min) at 1000 psi (70 bar). Installation requires specific torque values for both the valve itself and its locknut components.

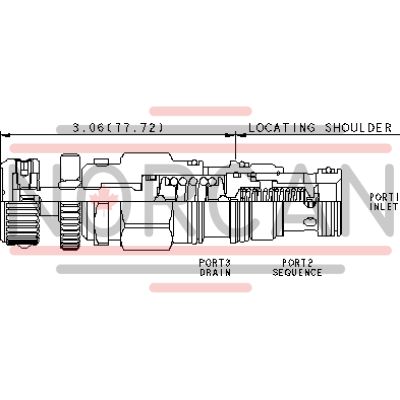

Pilot-operated, balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Not suitable for use in load holding applications due to spool leakage.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 10 - 15 in³/min.0,16 - 0,25 L/min. |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .50 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-202-006 |
Show FAQ
Additional Resources
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Sun Expands Corrosion-Resistant Solutions
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Sequence Valves Technical Tips
- Manufacturing Sun Cartridge Cavities
- Sequence Valves
- Sun Model Code Explanation; 999-901-334
- Cavity Information (S-171) and Tooling
- Cartridges: Materials of Construction
- Fluid and Temperature Recommendations
- Performance Data
- Sun's Floating Style Screw-In Cartridge
- Units of Measure, Settings, and Conversions
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
