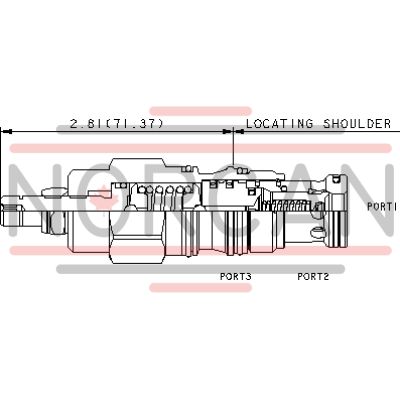

The Sun Hydraulics RSFSCWV (RSFSCWV) is a pilot-operated, balanced poppet sequence valve designed to supply a secondary circuit with flow once the inlet port 1 pressure surpasses the valve setting. This valve controls pressure at port 1 relative to the drain port 3 and remains unaffected by back pressure at port 2 up to the valve setting. It can regulate pressure in place of two-port relief valves if there is pressure in the return line. The RSFSCWV is part of a series where all three-port sequence cartridges are interchangeable, sharing flow paths and cavity sizes for a given frame. As the inlet port 1 pressure rises above the valve setting, pilot flow continues to increase. The main stage orifice is protected by a 150-micron stainless steel screen, ensuring durability and performance. This model is suitable for load-holding applications and immune to cavitation-related issues such as noise and manifold erosion due to its internal modulating mechanism. It accepts maximum pressure at port 2, making it ideal for cross-port relief circuits, and features Sun's floating style construction to prevent internal binding from excessive torque or machining variations. Key specifications include a capacity of 30 gpm (120 L/min), a maximum operating pressure of 5000 psi (350 bar), and a typical response time of 10 ms. The valve has minimal leakage at reseat, with only up to 10 drops/min (0.7 cc/min). Adjustments can be made with five clockwise turns, with specific torque requirements for installation and adjustments: Valve Hex Size is 1-1/8 inches (28.6 mm) with an installation torque of 45-50 lbf-ft (61-68 Nm), while adjustment screw internal hex size is 5/32 inches (4 mm) and locknut hex size is 9/16 inches (15 mm) with locknut torque between 80-90 lbf-in (9-10 Nm). The model weighs .50 lb (.25 kg) and uses Viton seal kits identified as cartridge number: 990402006.
