SUN HYDRAULICS
RSFSLCV
$132.05 USD
- SUN HYDRAULICS
- Material:RSFSLCV
- Model:RSFS-LCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

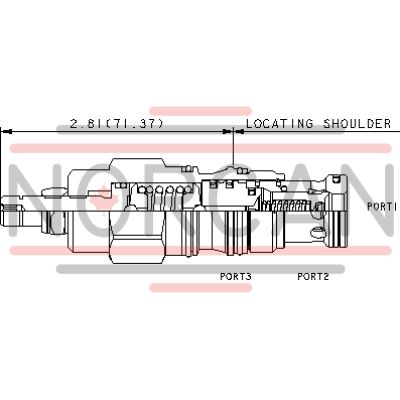

The Sun Hydraulics RSFSLCV (RSFSLCV) is a pilot-operated, balanced poppet sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This sequence valve is engineered to control the pressure at port 1 relative to the pressure at drain port 3, remaining unaffected by back pressure at port 2 up to the valve setting. It can serve as a regulator in place of two-port relief valves when there is pressure in the return line. All three-port sequence cartridges are interchangeable in terms of flow path and cavity for a given frame size. As the pressure at port 1 inlet increases relative to port 3 drain, pilot flow continues to rise above the valve setting. The main stage orifice is safeguarded by a 150-micron stainless steel screen, and pressure at port 3 adds directly to the valve setting at a 1:1 ratio, with an upper limit of 5000 psi (350 bar). This makes it suitable for load-holding applications and cross-port relief circuits. The internal modulating mechanism provides immunity against cavitation-related issues such as noise and manifold erosion. The Sun floating style construction reduces risks of internal parts binding due to excessive installation torque or machining variations. It has a capacity of 30 gpm (120 L/min) with factory settings established at 4 gpm (15 L/min) and maximum operating pressure of 5000 psi (350 bar). The typical response time is about 10 ms, with maximum leakage upon reseat being approximately 10 drops/min (0.7 cc/min). For adjustments, five clockwise turns increase settings, with specific torque requirements for installation and locknut adjustments provided for optimal performance and reliability.
The Sun Hydraulics RSFSLCV (RSFSLCV) is a pilot-operated, balanced poppet sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This sequence valve is engineered to control the pressure at port 1 relative to the pressure at drain port 3, remaining unaffected by back pressure at port 2 up to the valve setting. It can serve as a regulator in place of two-port relief valves when there is pressure in the return line. All three-port sequence cartridges are interchangeable in terms of flow path and cavity for a given frame size. As the pressure at port 1 inlet increases relative to port 3 drain, pilot flow continues to rise above the valve setting. The main stage orifice is safeguarded by a 150-micron stainless steel screen, and pressure at port 3 adds directly to the valve setting at a 1:1 ratio, with an upper limit of 5000 psi (350 bar). This makes it suitable for load-holding applications and cross-port relief circuits. The internal modulating mechanism provides immunity against cavitation-related issues such as noise and manifold erosion. The Sun floating style construction reduces risks of internal parts binding due to excessive installation torque or machining variations. It has a capacity of 30 gpm (120 L/min) with factory settings established at 4 gpm (15 L/min) and maximum operating pressure of 5000 psi (350 bar). The typical response time is about 10 ms, with maximum leakage upon reseat being approximately 10 drops/min (0.7 cc/min). For adjustments, five clockwise turns increase settings, with specific torque requirements for installation and locknut adjustments provided for optimal performance and reliability.
Pilot-operated, balanced poppet sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Suitable for use in load holding applications.
- Because the modulating occurs inside the cartridge these valves are immune to most of the problems associated with cavitation, namely noise and manifold erosion.
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at Reseat | 10 drops/min.0,7 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .50 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-402-006 |
