SUN HYDRAULICS
RSHCKEN
$237.58 USD
- SUN HYDRAULICS
- Material:RSHCKEN
- Model:RSHC-KEN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RSHCKEN (RSHCKEN) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 surpasses the valve setting. This valve manages the pressure at port 1 in relation to the drain port 3, remaining unaffected by back pressure at port 2 up to the valve setting. It can be utilized as a substitute for 2-port relief valves when there is pressure in the return line. All three-port sequence cartridges are interchangeable, featuring identical flow paths and cavity sizes for a given frame size. The valve's pilot flow increases as inlet pressure relative to drain pressure exceeds the valve setting, and it includes a 150-micron stainless steel screen protecting the main stage orifice. Port 3 pressure adds directly to the valve setting at a 1:1 ratio, with an upper limit of 5000 psi (350 bar). However, this model is not suitable for load-holding applications due to spool leakage. The RSHCKEN also offers adjustable settings using W or Y controls, with options for special settings that cap maximum adjustments. It employs Sun's floating style construction to reduce internal part binding risks from excessive installation torque or machining variations. The T-17A cavity in Series 3 accommodates up to 60 gpm (240 L/min) capacity, with factory pressure settings established at 4 gpm (15 L/min). Maximum operating pressure reaches up to 5000 psi (350 bar), and typical response time is around 10 ms. The adjustment screw uses an internal hex size of 5/32 inches (4 mm), while locknut torque ranges from 80-90 lbf-in (9-10 Nm). The model weighs approximately 1.50 lb (0.70 kg) and includes Viton seal kits under part number 990017006.
The Sun Hydraulics RSHCKEN (RSHCKEN) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 surpasses the valve setting. This valve manages the pressure at port 1 in relation to the drain port 3, remaining unaffected by back pressure at port 2 up to the valve setting. It can be utilized as a substitute for 2-port relief valves when there is pressure in the return line. All three-port sequence cartridges are interchangeable, featuring identical flow paths and cavity sizes for a given frame size. The valve's pilot flow increases as inlet pressure relative to drain pressure exceeds the valve setting, and it includes a 150-micron stainless steel screen protecting the main stage orifice. Port 3 pressure adds directly to the valve setting at a 1:1 ratio, with an upper limit of 5000 psi (350 bar). However, this model is not suitable for load-holding applications due to spool leakage. The RSHCKEN also offers adjustable settings using W or Y controls, with options for special settings that cap maximum adjustments. It employs Sun's floating style construction to reduce internal part binding risks from excessive installation torque or machining variations. The T-17A cavity in Series 3 accommodates up to 60 gpm (240 L/min) capacity, with factory pressure settings established at 4 gpm (15 L/min). Maximum operating pressure reaches up to 5000 psi (350 bar), and typical response time is around 10 ms. The adjustment screw uses an internal hex size of 5/32 inches (4 mm), while locknut torque ranges from 80-90 lbf-in (9-10 Nm). The model weighs approximately 1.50 lb (0.70 kg) and includes Viton seal kits under part number 990017006.

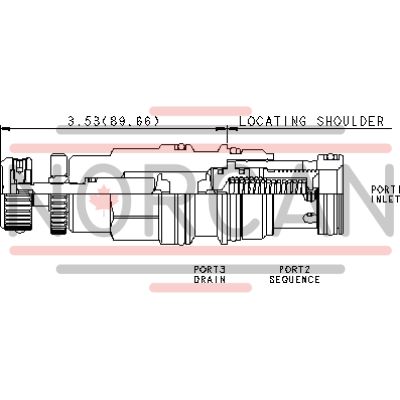

Pilot-operated, balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Not suitable for use in load holding applications due to spool leakage.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 15 - 20 in³/min.0,25 - 0,33 L/min. |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 4 in³/min.@1000 psi65 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.50 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
