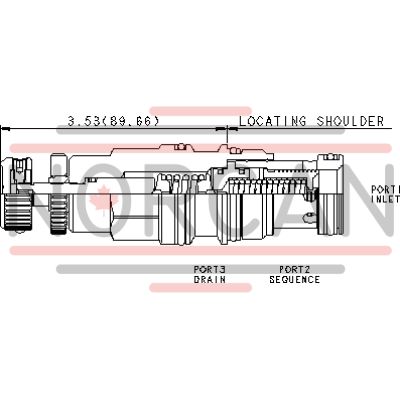

The Sun Hydraulics RSHCKWN (RSHCKWN) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 surpasses the preset valve setting. This valve is engineered to control the pressure at port 1 relative to the drain port 3, remaining unaffected by back pressure at port 2 up to the valve setting. It can function as a pressure regulator in lieu of two-port relief valves if there is pressure in the return line. Notably, all three-port sequence cartridges are interchangeable in terms of flow path and cavity for any given frame size. The pilot flow increases as the inlet pressure at port 1 exceeds that at port 3, and the main stage orifice is safeguarded by a 150-micron stainless steel screen. The maximum allowable pressure at port 3 should not exceed 5000 psi (350 bar), and this value directly adds to the valve setting on a one-to-one basis. However, this model is unsuitable for load-holding applications due to potential spool leakage. The RSHCKWN incorporates Sun's floating style construction, minimizing internal part binding risks due to excessive installation torque or machining variations. It has a cavity size of T-17A, Series 3 with a capacity of up to 60 gpm (240 L/min). Factory settings are established at 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar). The control pilot flow ranges from 15 to 20 in\u00b3/min (0.25 \u2013 0.33 L/min), and it features a typical response time of about 10 ms. The valve allows for adjustment throughout its full range using W or Y controls unless specified otherwise, where special settings denote maximum limits. It has specific installation requirements including torque specifications and uses Viton seal kits for maintenance purposes.
