SUN HYDRAULICS
RSHSLWN
$250.19 USD
- SUN HYDRAULICS
- Material:RSHSLWN
- Model:RSHS-LWN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RSHSLWN (RSHSLWN) is a pilot-operated, balanced poppet sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This versatile valve controls the pressure at port 1 relative to the drain port 3, remaining unaffected by back pressure at port 2 up to its set threshold. It can regulate pressure in place of two-port relief valves when there is return line pressure. All three-port sequence cartridges are interchangeable within a given frame size, ensuring ease of use and flexibility. The valve features a main stage orifice protected by a 150-micron stainless steel screen and can handle pressures up to 5000 psi (350 bar) at port 3, which adds directly to the valve setting in a 1:1 ratio. It is suitable for load-holding applications and immune to cavitation-related issues like noise and manifold erosion due to its internal modulation mechanism. The RSHSLWN can accept maximum pressure at port 2, making it ideal for cross-port relief circuits. Its construction minimizes internal binding risks from installation torque or machining variations. The valve has a capacity of 60 gpm (240 L/min), with factory pressure settings established at 4 gpm (15 L/min). It operates at a maximum pressure of 5000 psi (350 bar) with a typical response time of 10 ms and minimal leakage upon reseat. Installation requires specific torque settings: valve hex size is 1-1/4 in (31.8 mm), installation torque is between 150-160 lbf ft (203-217 Nm), adjustment screw internal hex size is 5/32 in (4 mm), locknut hex size is 9/16 in (15 mm), and locknut torque ranges from 80-90 lbf in (9-10 Nm). The model weighs approximately 1.50 lb (0.70 kg) and uses Viton seal kit number 990217006 for maintenance purposes.
The Sun Hydraulics RSHSLWN (RSHSLWN) is a pilot-operated, balanced poppet sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This versatile valve controls the pressure at port 1 relative to the drain port 3, remaining unaffected by back pressure at port 2 up to its set threshold. It can regulate pressure in place of two-port relief valves when there is return line pressure. All three-port sequence cartridges are interchangeable within a given frame size, ensuring ease of use and flexibility. The valve features a main stage orifice protected by a 150-micron stainless steel screen and can handle pressures up to 5000 psi (350 bar) at port 3, which adds directly to the valve setting in a 1:1 ratio. It is suitable for load-holding applications and immune to cavitation-related issues like noise and manifold erosion due to its internal modulation mechanism. The RSHSLWN can accept maximum pressure at port 2, making it ideal for cross-port relief circuits. Its construction minimizes internal binding risks from installation torque or machining variations. The valve has a capacity of 60 gpm (240 L/min), with factory pressure settings established at 4 gpm (15 L/min). It operates at a maximum pressure of 5000 psi (350 bar) with a typical response time of 10 ms and minimal leakage upon reseat. Installation requires specific torque settings: valve hex size is 1-1/4 in (31.8 mm), installation torque is between 150-160 lbf ft (203-217 Nm), adjustment screw internal hex size is 5/32 in (4 mm), locknut hex size is 9/16 in (15 mm), and locknut torque ranges from 80-90 lbf in (9-10 Nm). The model weighs approximately 1.50 lb (0.70 kg) and uses Viton seal kit number 990217006 for maintenance purposes.

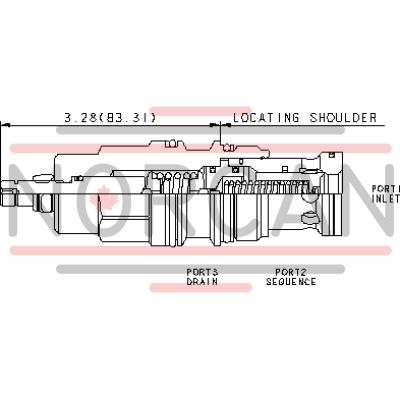

Pilot-operated, balanced poppet sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Suitable for use in load holding applications.
- Because the modulating occurs inside the cartridge these valves are immune to most of the problems associated with cavitation, namely noise and manifold erosion.
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at Reseat | 10 drops/min.0,7 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.50 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-217-006 |
