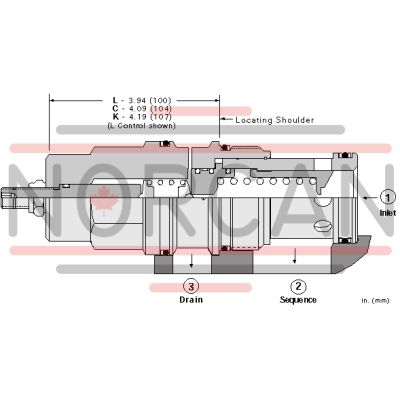

The Sun Hydraulics RSJCKWV (RSJCKWV) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the inlet port 1 pressure surpasses the valve setting. This sequence valve manages the pressure at port 1 in relation to the drain port 3, remaining unaffected by back pressure at port 2 up to the valve setting. It can regulate pressure in place of two-port relief valves if there is return line pressure. All three-port sequence cartridges share physical and functional interchangeability, ensuring consistent flow paths and cavity compatibility for specific frame sizes. The valve features a main stage orifice protected by a 150-micron stainless steel screen, with port 3 pressure directly adding to the valve setting at a 1:1 ratio, not exceeding 5000 psi (350 bar). It's unsuitable for load-holding applications due to spool leakage. The RSJCKWV incorporates Sun's floating style construction to minimize internal part binding risks from excessive installation torque or cavity/cartridge machining variations. It offers an adjustable range using W or Y controls unless specified otherwise for maximum settings. The cartridge fits Cavity T-19A, Series 4, with a capacity of 120 gpm (480 L/min) and factory pressure settings established at 4 gpm (15 L/min). It operates at a maximum pressure of 5000 psi (350 bar) with control pilot flow between 15-20 in\u00b3/min (0.25-0.33 L/min) and typical response time around 10 ms. Maximum valve leakage is rated at five in\u00b3/min at 110 SUS (24 cSt) under conditions of up to 1000 psi (70 bar). Installation requires specific torque settings: Valve Hex Size is 1-5/8 in (41.3 mm), Valve Installation Torque between 350-375 lbf\u00b7ft (474-508 Nm), Adjustment Screw Internal Hex Size of 5/32 in (4 mm), Locknut Hex Size of 9/16 in (15 mm), and Locknut Torque between 80-90 lbf\u00b7in (9-10 Nm). The model weighs approximately 3.10 lb (1.40 kg) and uses Viton seal kits like part number: 990019006 for maintenance needs.
