SUN HYDRAULICS
RVBAKBV

$98.78 USD

SUN HYDRAULICS
Material:RVBAKBV
Model:RVBA-KBV
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RVBAKBV (RVBAKBV) is a ventable, pilot-operated, balanced piston relief cartridge designed for precise pressure regulation in hydraulic systems. This normally closed valve opens to the tank port when the inlet pressure reaches its pre-set threshold, effectively throttling flow to maintain desired pressure levels. It features a vent port that allows for remote control by other pilot or two-way valves, enhancing its versatility and control capabilities. The RVBAKBV is characterized by its accuracy, low pressure rise versus flow, smooth and quiet operation, and moderate speed. It can accept maximum pressure at port 2, making it suitable for cross-port relief circuits; however, users should consider spool leakage in such applications. The minimum setting for all spring ranges is 75 psi (5 bar), and it is not recommended for load-holding applications due to potential leakage. The valve's design incorporates Sun's floating style construction to prevent internal part binding from excessive installation torque or machining variations. It operates within a maximum pressure of 5000 psi (350 bar) and has a capacity of 7.5 gpm (30 L/min). The response time is typically around 10 milliseconds, with maximum valve leakage at 110 SUS (24 cSt) being 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Installation requires specific torque settings: the valve hex size is 3/4 inch (19.1 mm), with an installation torque of 20-25 lbf\u00b7ft (27-33 Nm). The adjustment screw has an internal hex size of 5/32 inch (4 mm), while the locknut hex size is 9/16 inch (15 mm) with a torque requirement of 80-90 lbf\u00b7in (9-10 Nm). The model weighs .30 lb (.15 kg) and uses Viton seal kits under part number 990163006.

Description

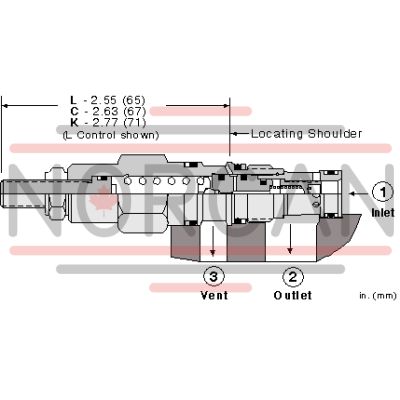

Ventable, pilot-operated, balanced piston relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. They provide a vent port (port 3) that connects between the main piston and pilot stage to provide for remote control by other pilot or 2-way valves. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.

A remote pilot relief on port 3 (vent) will control the valve below its own setting.
Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
Minimum setting is 75 psi (5 bar) for all spring ranges.
Not suitable for use in load holding applications due to spool leakage.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
The main stage orifice is protected against contamination.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-163A
Series	0
Capacity	7.5 gpm30 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Control Pilot Flow	7 - 10 in³/min.0,11 - 0,16 L/min.
Response Time - Typical	10 ms10 ms
Maximum Valve Leakage at 110 SUS (24 cSt)	2 in³/min.@1000 psi30 cc/min.@70 bar
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	3/4 in.19,1 mm
Valve Installation Torque	20 - 25 lbf ft27 - 33 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	.30 lb0,15 kg
Seal kit - Cartridge	Viton: 990-163-006

Show FAQ

Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
