SUN HYDRAULICS
RVBBKCN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

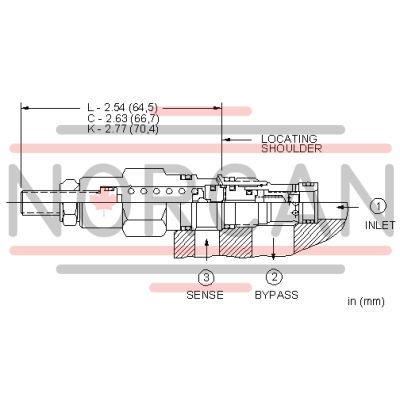

The Sun Hydraulics RVBBKCN (RVBBKCN) is a three-port normally closed modulating element with relief, designed to provide dual functionality when combined with an external orifice. It acts as a bypass compensator, controlling priority flow into a circuit based on the external orifice while bypassing excess input flow to tank port 2. Additionally, if the pressure at inlet port 1 exceeds the valve setting, it functions as a standard relief valve. This model is engineered to compensate pressure across all ranges at 50 psi (3.5 bar). The performance curve illustrates system pressure on the X-axis and the pressure differential created by the valve across the control orifice on the Y-axis. Its capacity and performance are determined by bypass flow rather than control flow. The RVBBKCN features a T-163A cavity and offers a series 0 capacity of up to 5 gpm (20 L/min). It can handle a maximum operating pressure of 5000 psi (350 bar) with typical response times around 10 ms and maximum valve leakage at 110 SUS (24 cSt) of 2 in\u00b3/min (30 cc/min). Adjustment is achieved via clockwise turns to increase settings, with specifics including a valve hex size of 3/4 inch (19.1 mm), installation torque between 20-25 lbf ft (27-33 Nm), an internal hex size for adjustment screws of 5/32 inch (4 mm), and locknut hex size of 9/16 inch (15 mm) requiring torque between 80-90 lbf in (9-10 Nm). The model weighs approximately .30 lb (.15 kg) and utilizes Viton seal kits, specifically cartridge number 990163006.
