SUN HYDRAULICS
RVCBKCN
$115.46 USD
- SUN HYDRAULICS
- Material:RVCBKCN
- Model:RVCB-KCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RVCBKCN (Material Number: RVCBKCN) is a three-port normally closed modulating element with relief, designed to provide dual functionality when used with an external orifice. Primarily, it serves as a bypass compensator that regulates priority flow into a circuit, with any excess input flow being redirected to tank port 2. Additionally, if the pressure at inlet port 1 exceeds the valve setting, the valve functions as a conventional relief valve. The compensating pressure varies across ranges: 45 psi (3 bar) for A range, 30 psi (2 bar) for B range, and 100 psi (7 bar) for C range. The performance curve illustrates system pressure on the X-axis and pressure differential across the control orifice on the Y-axis, dependent on bypass flows rather than control flow. The valve fits a T-11A cavity and has a capacity of 10 gpm (40 L/min). It operates at a maximum pressure of 5000 psi (350 bar), with a typical response time of 10 ms and maximum leakage of 2 in\u00b3/min at 110 SUS (30 cc/min at 70 bar). The factory pressure settings are established at 4 gpm (15 L/min). Adjustments can be made via clockwise turns to increase settings up to a maximum of five turns. Installation requires specific torque values: valve installation torque is between 30-35 lbf ft (41-47 Nm), while locknut torque is set between 80-90 lbf in (9-10 Nm). The model weighs approximately .40 lb (.20 kg) and uses Viton seal kits under part number 990011006.
The Sun Hydraulics RVCBKCN (Material Number: RVCBKCN) is a three-port normally closed modulating element with relief, designed to provide dual functionality when used with an external orifice. Primarily, it serves as a bypass compensator that regulates priority flow into a circuit, with any excess input flow being redirected to tank port 2. Additionally, if the pressure at inlet port 1 exceeds the valve setting, the valve functions as a conventional relief valve. The compensating pressure varies across ranges: 45 psi (3 bar) for A range, 30 psi (2 bar) for B range, and 100 psi (7 bar) for C range. The performance curve illustrates system pressure on the X-axis and pressure differential across the control orifice on the Y-axis, dependent on bypass flows rather than control flow. The valve fits a T-11A cavity and has a capacity of 10 gpm (40 L/min). It operates at a maximum pressure of 5000 psi (350 bar), with a typical response time of 10 ms and maximum leakage of 2 in\u00b3/min at 110 SUS (30 cc/min at 70 bar). The factory pressure settings are established at 4 gpm (15 L/min). Adjustments can be made via clockwise turns to increase settings up to a maximum of five turns. Installation requires specific torque values: valve installation torque is between 30-35 lbf ft (41-47 Nm), while locknut torque is set between 80-90 lbf in (9-10 Nm). The model weighs approximately .40 lb (.20 kg) and uses Viton seal kits under part number 990011006.

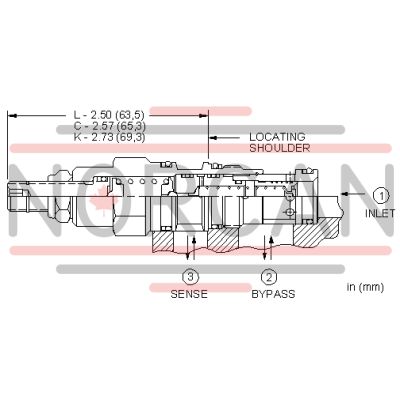

Three-port normally closed modulating elements with relief provide two functions when combined with an external orifice. The mainstage is a bypass compensator that controls a priority flow into the circuit, determined by the external orifice. Input flow in excess of the priority flow is bypassed to tank (port 2). If the inlet (port 1) pressure rises to the valve setting, the valve operates as a normal relief valve.
- Compensating pressure for the A range is 45 psi (3 bar), for the B range 30 psi (2 bar), and for the C range 100 psi (7 bar).
- Explanation of the performance curve: The X axis is system pressure. The Y axis shows the pressure differential that the valve creates across the control orifice. The curves represent various bypass flows (pump flow minus control flow). The capacity and performance of this valve is determined by the bypass flow, control flow is not a factor.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 10 gpm40 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
