SUN HYDRAULICS
RVCBLCN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

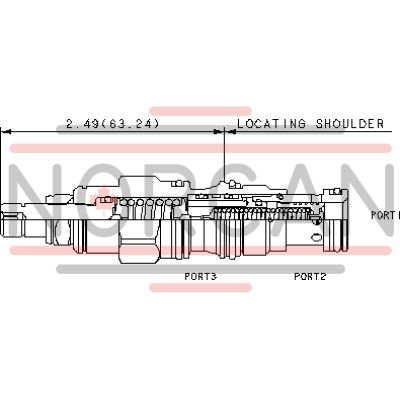

The Sun Hydraulics RVCBLCN (RVCBLCN) is a three-port normally closed modulating element with relief that provides dual functions when paired with an external orifice. This component acts as a bypass compensator, regulating priority flow into a circuit based on the external orifice's specifications, while excess input flow is redirected to tank port 2. When pressure at inlet port 1 exceeds the valve setting, it operates as a standard relief valve. The compensating pressure varies by range: 45 psi (3 bar) for A, 30 psi (2 bar) for B, and 100 psi (7 bar) for C. The valve's performance curve illustrates system pressure on the X axis and the resulting pressure differential across the control orifice on the Y axis, with curves indicating various bypass flows\u2014demonstrating that capacity and performance are determined by bypass flow rather than control flow. Designed to fit cavity T-11A Series 1, this model has a capacity of up to 10 gpm (40 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). Its typical response time is approximately 10 ms, with maximum valve leakage at 110 SUS/24 cSt rated at 2 in\u00b3/min (30 cc/min) at pressures of up to 1000 psi (70 bar). Adjustment is achieved through clockwise turns of up to five and a half turns for increasing settings. Installation requires a valve hex size of .78 inches (22.2 mm) and torque between 30 - 35 lbf ft (41 - 47 Nm). The internal hex size for adjustment screws is .532 inches (4 mm), while locknut hex size is .916 inches (15 mm), requiring torque between 80 - 90 lbf in (9 -10 Nm). This model weighs approximately .40 lb (.20 kg), and it uses Viton seal kits identified by part number 990011006.
