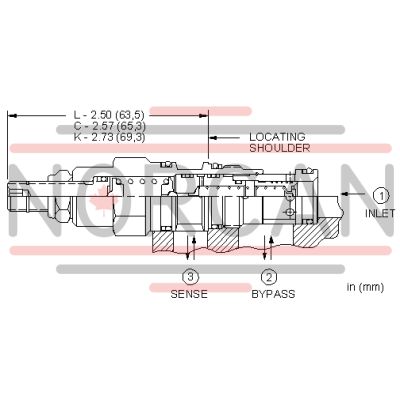

The Sun Hydraulics RVCBLDV (RVCBLDV) is a versatile hydraulic valve designed to serve dual functions when used with an external orifice. This three-port normally closed modulating element acts as a bypass compensator, controlling priority flow into a circuit while redirecting excess input flow to the tank port 2. Additionally, it functions as a relief valve if the inlet port 1 pressure exceeds the preset level. The valve offers different compensating pressure ranges: 45 psi (3 bar) for A range, 30 psi (2 bar) for B range, and 100 psi (7 bar) for C range. Its performance is depicted on a curve where system pressure is on the X-axis and the pressure differential across the control orifice is on the Y-axis, highlighting various bypass flows. The RVCBLDV features a T-11A cavity and operates with a series 1 capacity of up to 10 gpm (40 L/min). It can withstand a maximum operating pressure of 5000 psi (350 bar) and has a typical response time of just 10 milliseconds. The valve's design ensures minimal leakage, with maximum leakage at 110 SUS being only 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Adjustments can be made by turning clockwise up to five times to increase settings, with specific torque requirements for installation and adjustments: valve hex size is .78 in. (22.2 mm), installation torque ranges from 30-35 lbf ft (41-47 Nm), adjustment screw internal hex size is .532 in. (4 mm), locknut hex size is .916 in. (15 mm), and locknut torque ranges from 80-90 lbf in. (9-10 Nm). The model weighs approximately .40 lb (.20 kg) and uses Viton seal kits for optimal performance and durability.
