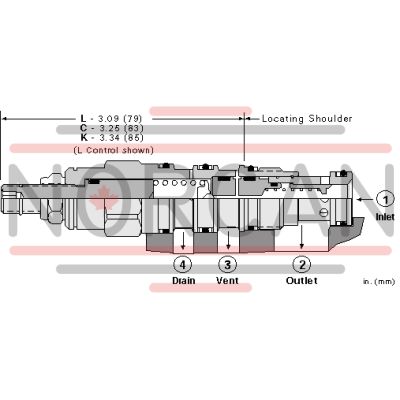

The Sun Hydraulics RVCDLAV (Material Number: RVCDLAV) is a ventable, pilot-operated, balanced piston relief cartridge with an external drain. These valves are designed to be normally closed pressure regulating devices. When the inlet port 1 pressure reaches the valve's set threshold, it opens to tank port 2, throttling flow to maintain the desired pressure level. The valve features a vent port 3 for remote control by other pilot or two-way valves and a drain port 4 that ensures insensitivity to back pressure. Known for their accuracy and low-pressure rise versus flow characteristics, these valves operate smoothly and quietly with moderate speed. The RVCDLAV is capable of accepting maximum pressure at port 2, making it suitable for cross-port relief circuits, though spool leakage should be considered in such applications. The main stage orifice is safeguarded by a 150-micron stainless steel screen. Due to spool leakage, these cartridges are not recommended for load-holding applications. Pressure at port 4 adds directly to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar). Cartridges with EPDM seals are intended for systems using phosphate ester fluids; exposure to petroleum-based substances will damage these seals. The valve incorporates Sun's floating style construction, reducing the risk of internal parts binding from excessive installation torque or variations in cavity/cartridge machining. It has a capacity of 15 gpm (60 L/min) and operates at a maximum pressure of 5000 psi (350 bar). The control pilot flow ranges from 7-10 in\u00b3/min (0.11-0.16 L/min), with typical response times around 10 ms. Maximum valve leakage is specified at 2 in\u00b3/min (30 cc/min) at 1000 psi (70 bar). Adjustments can be made using the W or Y control throughout its full range unless a special setting is specified.
