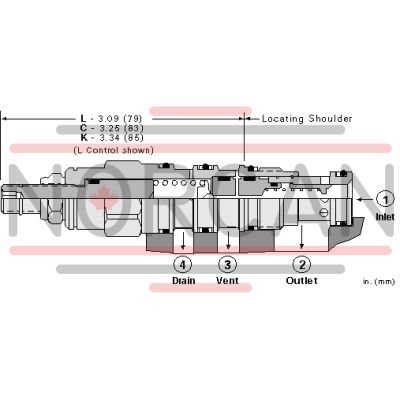

The Sun Hydraulics RVCDLEN (RVCDLEN) is a ventable, pilot-operated, balanced piston relief cartridge with an external drain. This normally closed pressure regulating valve opens to tank port 2 when the pressure at inlet port 1 reaches the valve setting, effectively throttling flow to regulate pressure. The design includes a vent port 3 for remote control by other pilot or 2-way valves and a drain port 4 to ensure insensitivity to back pressure. Known for accuracy and low-pressure rise versus flow, these valves operate smoothly and quietly with moderate speed. A remote pilot relief on port 3 can control the valve below its own setting. It is suitable for cross-port relief circuits but not for load-holding applications due to spool leakage considerations. The main stage orifice is protected by a 150-micron stainless steel screen, and it can accept maximum pressure at port 2. Pressure at port 4 is directly additive to the valve setting at a 1:1 ratio, not exceeding 5000 psi (350 bar). Cartridges with EPDM seals are intended for systems using phosphate ester fluids; exposure to petroleum-based fluids will damage these seals. The valve can be adjusted throughout its range using W or Y controls unless a special setting is specified as the maximum setting. The Sun floating style construction minimizes internal part binding due to excessive installation torque or machining variations in cavity/cartridge configurations. It features a T-21A cavity series with a capacity of up to 15 gpm (60 L/min), factory pressure settings established at 4 gpm (15 L/min), and maximum operating pressure of 5000 psi (350 bar). Control pilot flow ranges from 7-10 in\u00b3/min (0.11-0.16 L/min), with typical response times of around 10 ms and maximum valve leakage at specified conditions being minimal.
