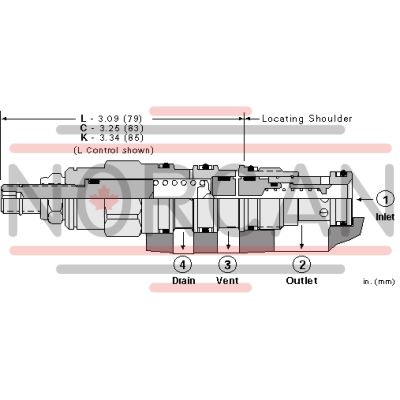

The Sun Hydraulics RVCDWAN (RVCDWAN) is a ventable, pilot-operated, balanced piston relief cartridge with an external drain, designed as a normally closed pressure regulating valve. The valve opens to tank port 2 when the inlet port 1 pressure reaches the set threshold, throttling flow to regulate pressure. It features a vent port 3 for remote control by other pilot or two-way valves and a drain port 4 that renders it insensitive to back pressure. This valve boasts accuracy, low-pressure rise versus flow, smooth and quiet operation, and moderate speed. A remote pilot relief on port 3 can control the valve below its own setting. It accepts maximum pressure at port 2, making it suitable for cross-port relief circuits but not for load-holding applications due to spool leakage. The main stage orifice is protected by a 150-micron stainless steel screen. Pressure at port 4 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar). Cartridges with EPDM seals are intended for systems using phosphate ester fluids; exposure to petroleum-based fluids will damage these seals. The valve incorporates Sun's floating style construction to minimize internal part binding from excessive installation torque or cavity/cartridge machining variations. With a capacity of 15 gpm (60 L/min), the factory pressure settings are established at 4 gpm (15 L/min). Maximum operating pressure is rated at 5000 psi (350 bar), with control pilot flow between 7-10 in\u00b3/min (0.11-0.16 L/min) and typical response time of approximately 10 ms. Maximum valve leakage stands at 2 in\u00b3/min under specific conditions, and adjustments can be made using an internal hex screw with detailed specifications provided for installation torque and component sizes.
