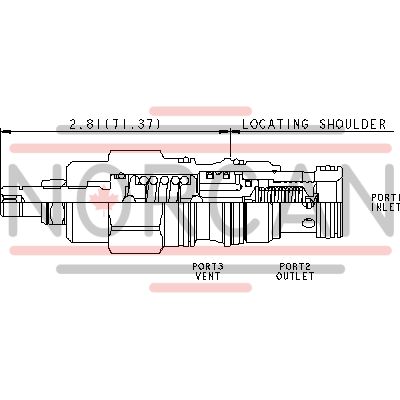

The Sun Hydraulics RVEALFN (RVEALFN) is a ventable, pilot-operated, balanced piston relief cartridge designed for precise pressure regulation in hydraulic systems. This normally closed valve opens to tank port 2 when the inlet port 1 pressure reaches the set threshold, thereby throttling flow to maintain desired pressure levels. It features a vent port, port 3, allowing for remote control via other pilot or two-way valves. The RVEALFN is noted for its accuracy, low pressure rise relative to flow, smooth and quiet operation, and moderate speed. It's capable of handling maximum pressure at port 2 and is suitable for cross-port relief circuits; however, spool leakage should be considered in such applications. A stainless steel screen protects the main stage orifice from debris larger than 150 microns. The valve is not recommended for load-holding applications due to potential spool leakage. The RVEALFN's back pressure on tank port 2 directly adds to the valve setting at a 1:1 ratio. For systems using phosphate ester fluids, cartridges with EPDM seals are available; these seals are incompatible with petroleum-based fluids. The valve incorporates Sun's floating style construction to minimize internal binding risks from excessive installation torque or cavity/cartridge machining variations. Key specifications include a capacity of up to 30 gpm (120 L/min), a maximum operating pressure of 5000 psi (350 bar), and a factory pressure setting established at 4 gpm (15 L/min). The control pilot flow ranges between 10-15 in\u00b3/min (0.16-0.25 L/min), with typical response times around 10 ms and maximum valve leakage at specified conditions being about 3 in\u00b3/min (50 cc/min). Adjustments are made by turning clockwise up to five times, with specific torque requirements outlined for installation and locknut settings.
