SUN HYDRAULICS
RVEBJWN
$140.88 USD
- SUN HYDRAULICS
- Material:RVEBJWN
- Model:RVEB-JWN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RVEBJWN (Material Number: RVEBJWN) is a three-port normally closed modulating element with relief capabilities, designed to perform dual functions when used with an external orifice. This component acts as a bypass compensator that regulates priority flow into a circuit based on the external orifice, while any surplus input flow is diverted to tank port 2. Additionally, if the pressure at inlet port 1 exceeds the valve's set threshold, it functions as a conventional relief valve. It features a compensating pressure of 120 psi (8 bar) across all ranges and its performance is primarily dictated by bypass flow, independent of control flow. The valve offers adjustable settings via W or Y controls and can be customized with special settings for maximum adjustment limits. Its technical specifications include a cavity size of T-2A, series 2 capacity of 20 gpm (80 L/min), maximum operating pressure of 5000 psi (350 bar), typical response time of 10 ms, and minimal leakage at specified conditions. The RVEBJWN model requires specific installation torque and adjustment parameters for optimal performance and includes an internal hex adjustment screw and locknut for secure settings. With its robust design, this hydraulic valve is suitable for applications requiring precise priority flow control and effective pressure relief in hydraulic systems.
The Sun Hydraulics RVEBJWN (Material Number: RVEBJWN) is a three-port normally closed modulating element with relief capabilities, designed to perform dual functions when used with an external orifice. This component acts as a bypass compensator that regulates priority flow into a circuit based on the external orifice, while any surplus input flow is diverted to tank port 2. Additionally, if the pressure at inlet port 1 exceeds the valve's set threshold, it functions as a conventional relief valve. It features a compensating pressure of 120 psi (8 bar) across all ranges and its performance is primarily dictated by bypass flow, independent of control flow. The valve offers adjustable settings via W or Y controls and can be customized with special settings for maximum adjustment limits. Its technical specifications include a cavity size of T-2A, series 2 capacity of 20 gpm (80 L/min), maximum operating pressure of 5000 psi (350 bar), typical response time of 10 ms, and minimal leakage at specified conditions. The RVEBJWN model requires specific installation torque and adjustment parameters for optimal performance and includes an internal hex adjustment screw and locknut for secure settings. With its robust design, this hydraulic valve is suitable for applications requiring precise priority flow control and effective pressure relief in hydraulic systems.

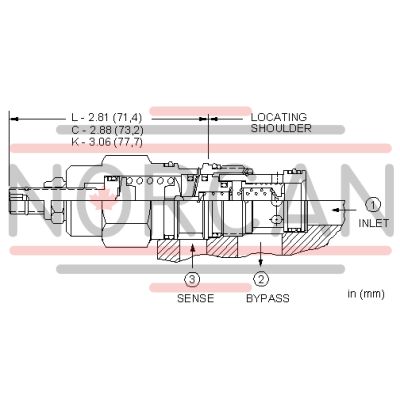

Three-port normally closed modulating elements with relief provide two functions when combined with an external orifice. The mainstage is a bypass compensator that controls a priority flow into the circuit, determined by the external orifice. Input flow in excess of the priority flow is bypassed to tank (port 2). If the inlet (port 1) pressure rises to the valve setting, the valve operates as a normal relief valve.
- Compensating pressure for all ranges is 120 psi (8 bar).
- Explanation of the performance curve: The X axis is system pressure. The Y axis shows the pressure differential that the valve creates across the control orifice. The curves represent various bypass flows (pump flow minus control flow). The capacity and performance of this valve is determined by the bypass flow, control flow is not a factor.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 20 gpm80 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .70 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-202-006 |
