SUN HYDRAULICS
RVEBNCN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

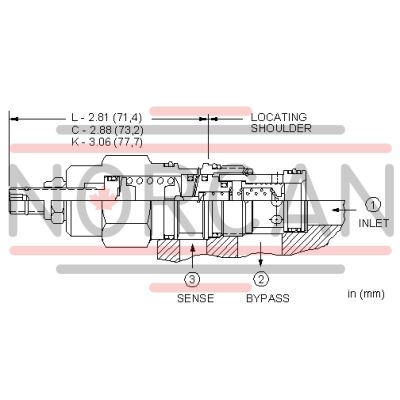

The Sun Hydraulics RVEBNCN (RVEBNCN) is a versatile three-port normally closed modulating element with relief functionality, designed to provide dual functions when paired with an external orifice. This component acts primarily as a bypass compensator, regulating priority flow into a circuit as dictated by the external orifice. Any input flow that exceeds this designated priority flow is directed to bypass to tank port 2. Additionally, if the pressure at inlet port 1 reaches the valve's set threshold, it operates as a conventional relief valve. The compensating pressure for all ranges is maintained at 120 psi (8 bar). The performance curve for this valve illustrates system pressure on the X-axis and the pressure differential across the control orifice on the Y-axis, with curves representing various bypass flows. Notably, the valve's capacity and performance are contingent upon bypass flow rather than control flow. This model features a cavity T-2A series with a capacity of 20 gpm (80 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). It has a typical response time of 10 ms and exhibits minimal leakage at maximum conditions. The valve's adjustment can be made via clockwise turns to increase settings up to 5.5 turns, with specific dimensions provided for installation and adjustments. With a weight of .70 lb (0.30 kg), it includes options for adjustments using W and Y controls, which can either be adjustable throughout their range or set to a specified maximum setting if needed. The assembly requires specific torque settings for both installation and locknut adjustments, ensuring secure placement within hydraulic systems.
