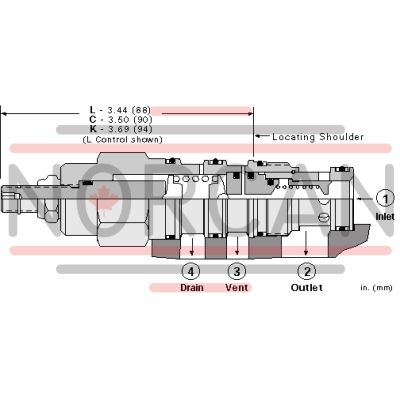

The Sun Hydraulics RVEDCEN (RVEDCEN) is a ventable, pilot-operated, balanced piston relief cartridge featuring an external drain, designed to function as a normally closed pressure regulating valve. It begins to open at the inlet port 1 when the pressure reaches the set point, allowing flow throttling to tank port 2 to regulate pressure. This model incorporates a vent port 3 for remote control via other pilot or two-way valves and a drain port 4, ensuring insensitivity to back pressure. The RVEDCEN is recognized for its accuracy, low-pressure rise versus flow characteristics, smooth operation, quiet performance, and moderate response speed. It can handle maximum pressures at port 2 and is suitable for cross-port relief circuits; however, spool leakage should be considered in such applications. The main stage orifice is protected by a 150-micron stainless steel screen. This valve is not recommended for load-holding applications due to potential spool leakage. The cartridge features EPDM seals compatible with phosphate ester fluids but are susceptible to damage from petroleum-based substances. Pressure at port 4 directly adds to the valve setting at a 1:1 ratio with a maximum limit of 5000 psi (350 bar). The RVEDCEN can be adjusted across its full range using W or Y controls unless specified otherwise with a special setting. It utilizes Sun's floating style construction to minimize internal binding risks due to installation torque or machining variations. This model fits into cavity T-22A and belongs to Series 2 with a capacity of up to 30 gpm (120 L/min). Factory settings are established at 4 gpm (15 L/min), with operating pressures reaching up to 5000 psi (350 bar). Control pilot flow ranges between 10-15 in\u00b3/min (0.16-0.25 L/min), and typical response time clocks in at approximately 10 ms. Maximum valve leakage is rated at three in\u00b3/min under specified conditions.
