The Sun Hydraulics RVESLQV (RVESLQV) is a ventable, pilot-operated, balanced poppet relief cartridge designed for precise pressure regulation in hydraulic systems. This valve remains normally closed and begins to open when the inlet port pressure reaches the predetermined setting, allowing flow to the tank port while regulating pressure. Notably, it features a vent port that enables remote control by other pilot or 2-way valves, making it suitable for applications such as load holding, provided that any valving on the vent port is zero leak. The valve's design ensures smooth and quiet operation with a low pressure rise versus flow and moderate speed. It effectively prevents cavitation issues like noise and manifold erosion due to its internal modulating mechanism. Engineered for versatility, this cartridge can handle maximum pressures at port 2 and is suitable for cross-port relief circuits. It also allows remote pilot relief control via the vent port below its setpoint. The valve's performance remains stable across varying oil temperatures and contamination levels thanks to its robust construction. A 150-micron stainless steel screen protects the main stage orifice from debris. Additionally, back pressure on the tank port directly influences the valve setting at a 1:1 ratio. The RVESLQV incorporates Sun's floating style construction to minimize internal binding risks due to excessive installation torque or machining variations. It has a capacity of 25 gpm (95 L/min) and can operate at pressures up to 5000 psi (350 bar). The cartridge includes an adjustment feature with five clockwise turns available to increase settings and comes with specific installation torques for optimal performance. Its compact size makes it easy to integrate into various hydraulic systems where precise pressure control is essential.

Description

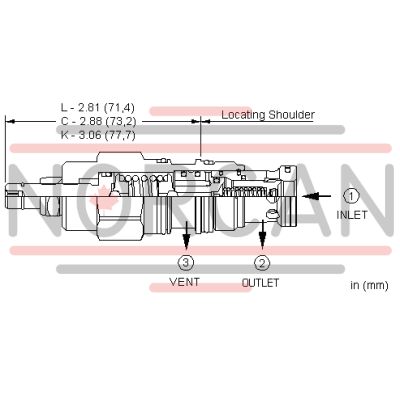

Ventable, pilot-operated, balanced-poppet relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. They provide a vent port (port 3) that connects between the main piston and pilot stage to provide for remote control by other pilot or 2-way valves. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.

Because the modulating occurs inside the cartridge, these valves are immune to most of the problems associated with cavitation, namely noise and manifold erosion.
Suitable for use in load holding applications, providing that any valving on the vent port (port 3) is zero leak.
Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
A remote pilot relief on port 3 (vent) will control the valve below its own setting.
Valve is relatively insensitive to varying oil temperatures and oil borne contamination.
Main stage orifice is protected by a 150 micron stainless steel screen.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-2A
Series	2
Capacity	25 gpm95 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Control Pilot Flow	15 - 20 in³/min.0,25 - 0,33 L/min.
Response Time - Typical	2 ms2 ms
Maximum Valve Leakage at Reseat	10 drops/min.0,7 cc/min.
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 1/8 in.28,6 mm
Valve Installation Torque	45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	1.60 lb0,70 kg
Seal kit - Cartridge	Viton: 990-402-006

Show FAQ

Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
