SUN HYDRAULICS
RVETCWV
$207.20 USD
- SUN HYDRAULICS
- Material:RVETCWV
- Model:RVET-CWV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RVETCWV (RVETCWV) is a ventable, pilot-operated, anti-shock relief cartridge designed to limit maximum system pressure and control the rate of pressure rise. This advanced hydraulic component features a unique three-port design, including a vent port that allows for remote control via other pilot or two-way valves. The valve is equipped with an adjustment screw to set both maximum relief and minimum threshold settings. Notably, the RVETCWV valve is immune to cavitation issues such as noise and manifold erosion due to its internal modulating mechanism. This cartridge can handle a maximum operating pressure of 5000 psi (350 bar) and has a capacity of 30 gpm (120 L/min). It is particularly suitable for cross-port relief circuits and provides protection for hydrostatic drives by reducing sudden jerks during reversals. The valve can also be used with switching devices to offer ramp characteristics similar to those provided by proportional valves. However, it is not recommended for load-holding applications. The RVETCWV model incorporates Sun's floating style construction, which minimizes the risk of internal parts binding due to excessive installation torque or machining variations in cavities. It includes a factory pressure setting established at 4 gpm (15 L/min), with a typical response time of 2 ms and a pressure ramp-up time between 200-400 ms. The valve's main stage orifice is protected against contamination, enhancing its durability and reliability in various applications. Additional features include compatibility with small power units that can start against an anti-shock relief to extend pump life, as well as backpressure on the tank port being directly additive to the valve setting at a 1:1 ratio. The cartridge comes with Viton seals and requires specific torque settings for installation and adjustment.
The Sun Hydraulics RVETCWV (RVETCWV) is a ventable, pilot-operated, anti-shock relief cartridge designed to limit maximum system pressure and control the rate of pressure rise. This advanced hydraulic component features a unique three-port design, including a vent port that allows for remote control via other pilot or two-way valves. The valve is equipped with an adjustment screw to set both maximum relief and minimum threshold settings. Notably, the RVETCWV valve is immune to cavitation issues such as noise and manifold erosion due to its internal modulating mechanism. This cartridge can handle a maximum operating pressure of 5000 psi (350 bar) and has a capacity of 30 gpm (120 L/min). It is particularly suitable for cross-port relief circuits and provides protection for hydrostatic drives by reducing sudden jerks during reversals. The valve can also be used with switching devices to offer ramp characteristics similar to those provided by proportional valves. However, it is not recommended for load-holding applications. The RVETCWV model incorporates Sun's floating style construction, which minimizes the risk of internal parts binding due to excessive installation torque or machining variations in cavities. It includes a factory pressure setting established at 4 gpm (15 L/min), with a typical response time of 2 ms and a pressure ramp-up time between 200-400 ms. The valve's main stage orifice is protected against contamination, enhancing its durability and reliability in various applications. Additional features include compatibility with small power units that can start against an anti-shock relief to extend pump life, as well as backpressure on the tank port being directly additive to the valve setting at a 1:1 ratio. The cartridge comes with Viton seals and requires specific torque settings for installation and adjustment.

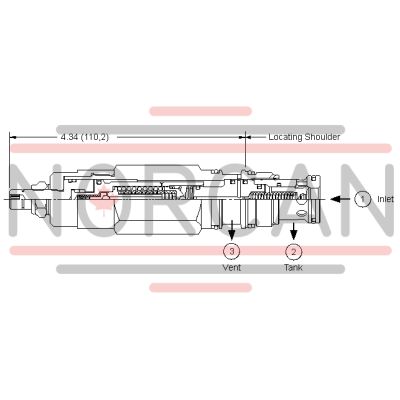

Ventable, pilot-operated, anti shock relief cartridges limit maximum system pressure and also limit the rate of pressure rise. The valve opens and then ramps closed at a constant speed, independent of settings and flows. These 3 port valves include a vent port (port 3) that connects between the main piston and the pilot stage to provide for remote control by other pilot or 2-way valves. The adjust screw determines the maximum (relief) setting and the minimum (threshold) setting.
- Because the modulating occurs inside the cartridge, these valves are immune to most of the problems associated with cavitation, namely noise and manifold erosion.
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
- A remote pilot relief on port 3 (vent) will control the valve below its own setting.
- Not suitable for use in load holding applications.
- When pressure at the inlet (port 1) exceeds the threshold setting, the valve opens to tank (port 2). The pilot section moves forward at a steady rate, increasing the setting by compressing the pilot spring. Maximum setting is achieved when the pilot section reaches a mechanical stop.
- Valve provides protection for hydrostatic drives by reducing the jerk caused by sudden reversals. The valve is suitable for cross-port applications.
- When used with a switching device, the valve can provide the ramp characteristic typically provided by proportional valves.
- Small power units can be started against an anti shock relief to provide longer pump life.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
- The main stage orifice is protected against contamination.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 10 - 25 in³/min.0,16 - 0,41 L/min. |
| Response Time - Typical | 2 ms2 ms |
| U.S. Patent # | 6,039,0706,039,070 |
| Pressure Ramp Up Time | 200 - 400 ms200 - 400 ms |
| Adjustment - Number of Clockwise Turns to Increase Setting | 4.54.5 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Seal kit - Cartridge | Viton: 990-402-006 |
