SUN HYDRAULICS
RVETLWN
$191.31 USD
- SUN HYDRAULICS
- Material:RVETLWN
- Model:RVET-LWN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RVETLWN (RVETLWN) is a ventable, pilot-operated, anti-shock relief cartridge designed to limit maximum system pressure and control the rate of pressure rise. This robust valve opens and closes at a constant speed, independent of settings and flows, making it highly reliable for various hydraulic applications. It features a three-port design with a vent port that allows for remote control by other pilot or two-way valves. The valve's adjust screw sets both the maximum relief and minimum threshold settings. One of its key advantages is its immunity to cavitation-related issues such as noise and manifold erosion due to its internal modulating mechanism. This valve can handle maximum pressure at port 2 and is suitable for cross-port relief circuits, offering protection for hydrostatic drives by reducing sudden reversals' jerkiness. However, it is not suitable for load-holding applications. When the inlet port 1 pressure surpasses the threshold setting, the valve opens to tank port 2 while the pilot section moves forward steadily, compressing the pilot spring until reaching a mechanical stop at maximum setting. The RVETLWN can be used with switching devices to provide ramp characteristics similar to proportional valves. It also aids in extending pump life by allowing small power units to start against an anti-shock relief. The back pressure on tank port 2 adds directly to the valve setting at a 1:1 ratio, ensuring precise control over system pressures. With a capacity of 30 gpm (120 L/min) and a maximum operating pressure of 5000 psi (350 bar), this cartridge incorporates Sun's floating style construction to minimize binding risks due to excessive torque or machining variations. It includes features like contamination protection for the main stage orifice and offers easy adjustment with specific torque requirements for installation.
The Sun Hydraulics RVETLWN (RVETLWN) is a ventable, pilot-operated, anti-shock relief cartridge designed to limit maximum system pressure and control the rate of pressure rise. This robust valve opens and closes at a constant speed, independent of settings and flows, making it highly reliable for various hydraulic applications. It features a three-port design with a vent port that allows for remote control by other pilot or two-way valves. The valve's adjust screw sets both the maximum relief and minimum threshold settings. One of its key advantages is its immunity to cavitation-related issues such as noise and manifold erosion due to its internal modulating mechanism. This valve can handle maximum pressure at port 2 and is suitable for cross-port relief circuits, offering protection for hydrostatic drives by reducing sudden reversals' jerkiness. However, it is not suitable for load-holding applications. When the inlet port 1 pressure surpasses the threshold setting, the valve opens to tank port 2 while the pilot section moves forward steadily, compressing the pilot spring until reaching a mechanical stop at maximum setting. The RVETLWN can be used with switching devices to provide ramp characteristics similar to proportional valves. It also aids in extending pump life by allowing small power units to start against an anti-shock relief. The back pressure on tank port 2 adds directly to the valve setting at a 1:1 ratio, ensuring precise control over system pressures. With a capacity of 30 gpm (120 L/min) and a maximum operating pressure of 5000 psi (350 bar), this cartridge incorporates Sun's floating style construction to minimize binding risks due to excessive torque or machining variations. It includes features like contamination protection for the main stage orifice and offers easy adjustment with specific torque requirements for installation.

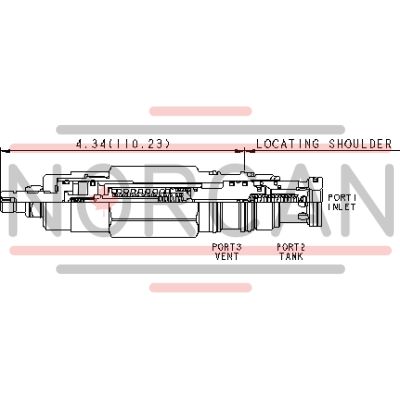

Ventable, pilot-operated, anti shock relief cartridges limit maximum system pressure and also limit the rate of pressure rise. The valve opens and then ramps closed at a constant speed, independent of settings and flows. These 3 port valves include a vent port (port 3) that connects between the main piston and the pilot stage to provide for remote control by other pilot or 2-way valves. The adjust screw determines the maximum (relief) setting and the minimum (threshold) setting.
- Because the modulating occurs inside the cartridge, these valves are immune to most of the problems associated with cavitation, namely noise and manifold erosion.
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
- A remote pilot relief on port 3 (vent) will control the valve below its own setting.
- Not suitable for use in load holding applications.
- When pressure at the inlet (port 1) exceeds the threshold setting, the valve opens to tank (port 2). The pilot section moves forward at a steady rate, increasing the setting by compressing the pilot spring. Maximum setting is achieved when the pilot section reaches a mechanical stop.
- Valve provides protection for hydrostatic drives by reducing the jerk caused by sudden reversals. The valve is suitable for cross-port applications.
- When used with a switching device, the valve can provide the ramp characteristic typically provided by proportional valves.
- Small power units can be started against an anti shock relief to provide longer pump life.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
- The main stage orifice is protected against contamination.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 10 - 25 in³/min.0,16 - 0,41 L/min. |
| Response Time - Typical | 2 ms2 ms |
| U.S. Patent # | 6,039,0706,039,070 |
| Pressure Ramp Up Time | 200 - 400 ms200 - 400 ms |
| Adjustment - Number of Clockwise Turns to Increase Setting | 4.54.5 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Seal kit - Cartridge | Viton: 990-402-006 |
