SUN HYDRAULICS
RVGAMEV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

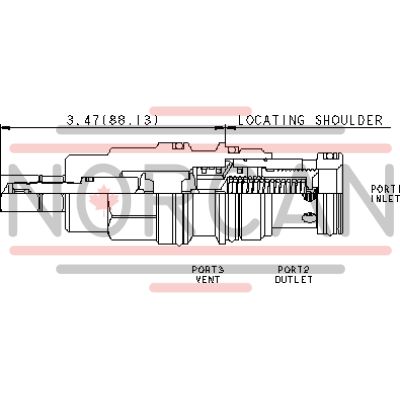

The Sun Hydraulics RVGAMEV (Material Number: RVGAMEV) is a ventable, pilot-operated, balanced piston relief cartridge designed for precise pressure regulation in hydraulic systems. This normally closed valve opens to tank port 2 once the inlet port 1 pressure reaches the preset level, effectively throttling flow to maintain desired pressure. It features a vent port 3 for remote control via other pilot or 2-way valves, offering smooth operation with low pressure rise versus flow. The valve is equipped with a stainless steel screen to protect the main stage orifice and can handle maximum pressure at port 2, making it suitable for cross-port relief circuits\u2014though spool leakage should be considered in such applications. This cartridge incorporates Sun's floating-style construction to minimize binding issues due to installation torque or machining variations. It is not recommended for load-holding applications due to potential spool leakage. The valve setting can be adjusted by turning the adjustment screw clockwise up to five times, with a locknut provided for secure positioning. The RVGAMEV model accepts back pressure on tank port 2 at a 1:1 ratio relative to the valve setting and comes standard with Viton seals; however, EPDM seals are available for systems using phosphate ester fluids\u2014these should not be exposed to petroleum-based fluids as they may cause damage. The cartridge fits into a T-17A cavity and has a series 3 capacity of up to 60 gpm (240 L/min), operating under pressures up to 5000 psi (350 bar). With typical response times of approximately 10 ms and control pilot flows between 15-20 in\u00b3/min (0.25-0.33 L/min), this valve ensures efficient performance in various hydraulic applications requiring controlled pressure relief and regulation.
