SUN HYDRAULICS
RVGAMJV
$236.49 USD
- SUN HYDRAULICS
- Material:RVGAMJV
- Model:RVGA-MJV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RVGAMJV (RVGAMJV) is a ventable, pilot-operated, balanced piston relief cartridge designed for precise pressure regulation in hydraulic systems. This valve remains normally closed until the inlet port pressure reaches a designated setting, at which point it opens to the tank port to modulate flow and maintain pressure. It features a vent port that facilitates remote control through other pilot or 2-way valves, offering flexibility in system design. Known for its accuracy and low pressure rise relative to flow, the RVGAMJV operates smoothly and quietly with moderate response speed. This valve is suitable for applications involving cross-port relief circuits but should not be used in load-holding applications due to potential spool leakage. The main stage orifice is safeguarded by a 150-micron stainless steel screen, ensuring durability and reliability under demanding conditions. Additionally, the valve's back pressure on the tank port is directly additive to the valve setting at a 1:1 ratio. The RVGAMJV can handle maximum operating pressures up to 5000 psi (350 bar) and has a capacity of 60 gpm (240 L/min). It incorporates Sun's floating-style construction to minimize internal binding risks caused by excessive installation torque or machining variations. The cartridge is available with EPDM seals for use with phosphate ester fluids; however, these seals are incompatible with petroleum-based substances. Installation specifications include a valve hex size of 1 1/4 inches (31.8 mm), an installation torque range of 150-160 lbf ft (203-217 Nm), and adjustment capabilities via an internal hex screw. The model weighs approximately 1.60 lb (0.70 kg) and offers reliable performance across various hydraulic applications requiring precise pressure control.
The Sun Hydraulics RVGAMJV (RVGAMJV) is a ventable, pilot-operated, balanced piston relief cartridge designed for precise pressure regulation in hydraulic systems. This valve remains normally closed until the inlet port pressure reaches a designated setting, at which point it opens to the tank port to modulate flow and maintain pressure. It features a vent port that facilitates remote control through other pilot or 2-way valves, offering flexibility in system design. Known for its accuracy and low pressure rise relative to flow, the RVGAMJV operates smoothly and quietly with moderate response speed. This valve is suitable for applications involving cross-port relief circuits but should not be used in load-holding applications due to potential spool leakage. The main stage orifice is safeguarded by a 150-micron stainless steel screen, ensuring durability and reliability under demanding conditions. Additionally, the valve's back pressure on the tank port is directly additive to the valve setting at a 1:1 ratio. The RVGAMJV can handle maximum operating pressures up to 5000 psi (350 bar) and has a capacity of 60 gpm (240 L/min). It incorporates Sun's floating-style construction to minimize internal binding risks caused by excessive installation torque or machining variations. The cartridge is available with EPDM seals for use with phosphate ester fluids; however, these seals are incompatible with petroleum-based substances. Installation specifications include a valve hex size of 1 1/4 inches (31.8 mm), an installation torque range of 150-160 lbf ft (203-217 Nm), and adjustment capabilities via an internal hex screw. The model weighs approximately 1.60 lb (0.70 kg) and offers reliable performance across various hydraulic applications requiring precise pressure control.

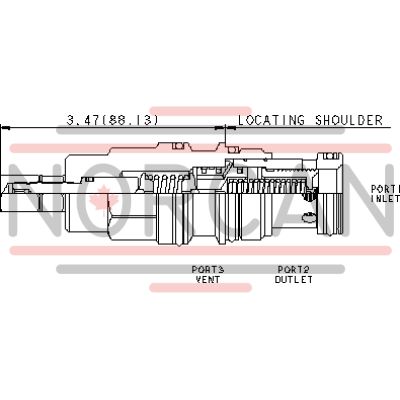

Ventable, pilot-operated, balanced piston relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. They provide a vent port (port 3) that connects between the main piston and pilot stage to provide for remote control by other pilot or 2-way valves. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.
- A remote pilot relief on port 3 (vent) will control the valve below its own setting.
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
- Main stage orifice is protected by a 150 micron stainless steel screen.
- Not suitable for use in load holding applications due to spool leakage.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 15 - 20 in³/min.0,25 - 0,33 L/min. |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 4 in³/min.@1000 psi65 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
