SUN HYDRAULICS
RVGBCAN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

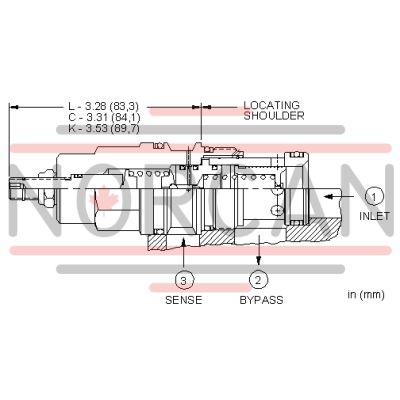

The Sun Hydraulics RVGBCAN (Material Number: RVGBCAN) is a three-port normally closed modulating element with relief, designed to provide dual functions when used alongside an external orifice. This component acts primarily as a bypass compensator, regulating priority flow into the circuit as determined by the external orifice. Any input flow exceeding this priority flow is redirected to tank port 2. Additionally, if the inlet port 1 pressure surpasses the valve setting, it functions as a standard relief valve. The compensating pressure for all ranges is set at 120 psi (8 bar). The performance curve illustrates how system pressure (X-axis) affects the pressure differential across the control orifice (Y-axis), with various curves representing different bypass flows. The valve's capacity and performance are dictated solely by the bypass flow rather than control flow. Key specifications include a cavity type of T-17A, Series 3, and a capacity of 40 gpm (160 L/min). The factory pressure settings are established at 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar). Typical response time is approximately 10 ms, and maximum valve leakage at 110 SUS (24 cSt) is rated at 4 in\u00b3/min (65 cc/min) at 1000 psi (70 bar). For adjustments, there are up to five clockwise turns available to increase settings. The valve features a hex size of 1-1/4 in. (31.8 mm) and an installation torque range of 150 - 160 lbf ft (203 - 217 Nm). Additional dimensions include an adjustment screw internal hex size of 5/32 in. (4 mm), locknut hex size of 9/16 in. (15 mm), and locknut torque between 80 - 90 lbf in. (9 -10 Nm). This model weighs approximately 1.60 lb (0.70 kg) and utilizes a Viton seal kit with cartridge number: 990017006.
