SUN HYDRAULICS
RVGBCCN
$299.03 USD
- SUN HYDRAULICS
- Material:RVGBCCN
- Model:RVGB-CCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RVGBCCN (Material Number: RVGBCCN) is a three-port normally closed modulating element with relief, designed to provide dual functions when used in conjunction with an external orifice. Primarily, it acts as a bypass compensator that regulates priority flow into a circuit based on the external orifice, while any input flow exceeding this priority flow is diverted to tank port 2. Additionally, if the pressure at inlet port 1 exceeds the valve's setting, it functions as a standard relief valve. The compensating pressure across all ranges is set at 120 psi (8 bar). The valve's performance curve illustrates system pressure on the X-axis and the pressure differential across the control orifice on the Y-axis, with various curves indicating different bypass flows, defined as pump flow minus control flow. Notably, the valve's capacity and performance are dictated by bypass flow alone. This model is built for a T-17A cavity and belongs to Series 3, with a capacity of up to 40 gpm (160 L/min). It can handle a maximum operating pressure of 5000 psi (350 bar) and typically responds within 10 ms. Maximum leakage at 110 SUS (24 cSt) is measured at 4 in\u00b3/min (65 cc/min). Adjustment settings can be increased by turning clockwise up to five full turns. The valve features specific installation requirements: hex size of 1\u00bc inches (31.8 mm), installation torque between 150-160 lbf ft (203-217 Nm), an internal hex size for adjustment screws of ^5\u204432 inches (4 mm), locknut hex size of ^9\u204416 inches (15 mm), and locknut torque between 80-90 lbf in (9-10 Nm). Weighing approximately 1.60 lb (0.70 kg), this model uses Viton seal kits identified by Cartridge number: 990017006.
The Sun Hydraulics RVGBCCN (Material Number: RVGBCCN) is a three-port normally closed modulating element with relief, designed to provide dual functions when used in conjunction with an external orifice. Primarily, it acts as a bypass compensator that regulates priority flow into a circuit based on the external orifice, while any input flow exceeding this priority flow is diverted to tank port 2. Additionally, if the pressure at inlet port 1 exceeds the valve's setting, it functions as a standard relief valve. The compensating pressure across all ranges is set at 120 psi (8 bar). The valve's performance curve illustrates system pressure on the X-axis and the pressure differential across the control orifice on the Y-axis, with various curves indicating different bypass flows, defined as pump flow minus control flow. Notably, the valve's capacity and performance are dictated by bypass flow alone. This model is built for a T-17A cavity and belongs to Series 3, with a capacity of up to 40 gpm (160 L/min). It can handle a maximum operating pressure of 5000 psi (350 bar) and typically responds within 10 ms. Maximum leakage at 110 SUS (24 cSt) is measured at 4 in\u00b3/min (65 cc/min). Adjustment settings can be increased by turning clockwise up to five full turns. The valve features specific installation requirements: hex size of 1\u00bc inches (31.8 mm), installation torque between 150-160 lbf ft (203-217 Nm), an internal hex size for adjustment screws of ^5\u204432 inches (4 mm), locknut hex size of ^9\u204416 inches (15 mm), and locknut torque between 80-90 lbf in (9-10 Nm). Weighing approximately 1.60 lb (0.70 kg), this model uses Viton seal kits identified by Cartridge number: 990017006.

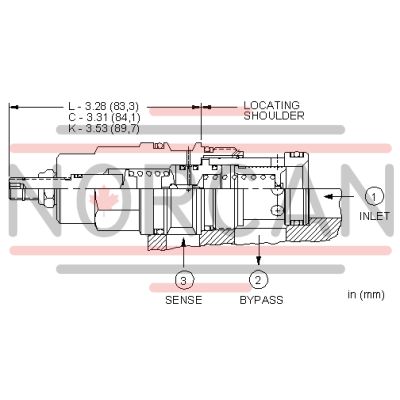

Three-port normally closed modulating elements with relief provide two functions when combined with an external orifice. The mainstage is a bypass compensator that controls a priority flow into the circuit, determined by the external orifice. Input flow in excess of the priority flow is bypassed to tank (port 2). If the inlet (port 1) pressure rises to the valve setting, the valve operates as a normal relief valve.
- Compensating pressure for all ranges is 120 psi (8 bar).
- Explanation of the performance curve: The X axis is system pressure. The Y axis shows the pressure differential that the valve creates across the control orifice. The curves represent various bypass flows (pump flow minus control flow). The capacity and performance of this valve is determined by the bypass flow, control flow is not a factor.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 4 in³/min.@1000 psi65 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
