SUN HYDRAULICS
RVGBCDV
$305.98 USD
- SUN HYDRAULICS
- Material:RVGBCDV
- Model:RVGB-CDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RVGBCDV (RVGBCDV) is a versatile three-port normally closed modulating element with relief, designed to provide dual functionality when paired with an external orifice. This component acts as a bypass compensator, efficiently controlling priority flow into a circuit based on the external orifice settings. Any input flow exceeding this priority is redirected to the tank port 2. Additionally, if the inlet port 1 pressure surpasses the valve's set threshold, it functions as a conventional relief valve. The compensating pressure for all ranges stands at 120 psi (8 bar), ensuring reliable performance across various applications. Performance is depicted through curves that illustrate system pressure against the pressure differential created by the valve across the control orifice. The valve's capacity and performance are chiefly influenced by bypass flow, independent of control flow considerations. It fits into a T-17A cavity and belongs to Series 3, boasting a capacity of 40 gpm (160 L/min). The maximum operating pressure reaches up to 5000 psi (350 bar), with typical response times around 10 ms. Maximum leakage at 110 SUS (24 cSt) is minimal, measuring at approximately 4 in\u00b3/min (65 cc/min) at 1000 psi (70 bar). Adjustment involves up to five clockwise turns to increase settings, with specific torque requirements for installation and adjustment components: valve hex size is 1\u00bc inches (31.8 mm), installation torque ranges from 150-160 lbf\u00b7ft (203-217 Nm), adjustment screw internal hex size is ^5/32 inch (4 mm), locknut hex size is ^9/16 inch (15 mm), and locknut torque spans from 80-90 lbf\u00b7in (9-10 Nm). The model weighs approximately 1.60 lb (0.70 kg) and uses Viton seal kits for optimal sealing performance.
The Sun Hydraulics RVGBCDV (RVGBCDV) is a versatile three-port normally closed modulating element with relief, designed to provide dual functionality when paired with an external orifice. This component acts as a bypass compensator, efficiently controlling priority flow into a circuit based on the external orifice settings. Any input flow exceeding this priority is redirected to the tank port 2. Additionally, if the inlet port 1 pressure surpasses the valve's set threshold, it functions as a conventional relief valve. The compensating pressure for all ranges stands at 120 psi (8 bar), ensuring reliable performance across various applications. Performance is depicted through curves that illustrate system pressure against the pressure differential created by the valve across the control orifice. The valve's capacity and performance are chiefly influenced by bypass flow, independent of control flow considerations. It fits into a T-17A cavity and belongs to Series 3, boasting a capacity of 40 gpm (160 L/min). The maximum operating pressure reaches up to 5000 psi (350 bar), with typical response times around 10 ms. Maximum leakage at 110 SUS (24 cSt) is minimal, measuring at approximately 4 in\u00b3/min (65 cc/min) at 1000 psi (70 bar). Adjustment involves up to five clockwise turns to increase settings, with specific torque requirements for installation and adjustment components: valve hex size is 1\u00bc inches (31.8 mm), installation torque ranges from 150-160 lbf\u00b7ft (203-217 Nm), adjustment screw internal hex size is ^5/32 inch (4 mm), locknut hex size is ^9/16 inch (15 mm), and locknut torque spans from 80-90 lbf\u00b7in (9-10 Nm). The model weighs approximately 1.60 lb (0.70 kg) and uses Viton seal kits for optimal sealing performance.

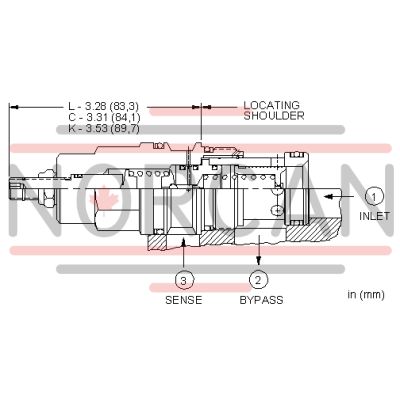

Three-port normally closed modulating elements with relief provide two functions when combined with an external orifice. The mainstage is a bypass compensator that controls a priority flow into the circuit, determined by the external orifice. Input flow in excess of the priority flow is bypassed to tank (port 2). If the inlet (port 1) pressure rises to the valve setting, the valve operates as a normal relief valve.
- Compensating pressure for all ranges is 120 psi (8 bar).
- Explanation of the performance curve: The X axis is system pressure. The Y axis shows the pressure differential that the valve creates across the control orifice. The curves represent various bypass flows (pump flow minus control flow). The capacity and performance of this valve is determined by the bypass flow, control flow is not a factor.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 4 in³/min.@1000 psi65 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
