SUN HYDRAULICS
RVGBKCV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

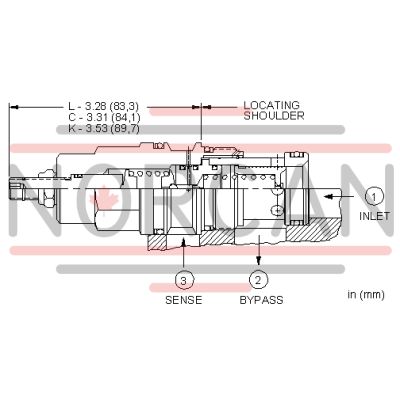

The Sun Hydraulics RVGBKCV (RVGBKCV) is a three-port normally closed modulating element with relief capabilities, designed to provide dual functions when integrated with an external orifice. This component acts as a bypass compensator, managing priority flow into the circuit based on the external orifice's determination, while excess input flow is diverted to tank port 2. If pressure at inlet port 1 surpasses the valve's set threshold, it functions as a conventional relief valve. The compensating pressure across all ranges is maintained at 120 psi (8 bar). The performance curve illustrates system pressure on the X-axis and the pressure differential across the control orifice on the Y-axis, with curves depicting various bypass flows. The valve's capacity and performance hinge on bypass flow rather than control flow. It features a T-17A cavity from Series 3 and supports a maximum capacity of 40 gpm (160 L/min). The valve can operate under pressures up to 5000 psi (350 bar), with a typical response time of 10 ms. Maximum leakage is rated at 4 in\u00b3/min (65 cc/min) at 110 SUS (24 cSt) under 1000 psi (70 bar). For adjustments, it requires approximately five clockwise turns to increase settings, with specific torque requirements for installation and adjustment components. The valve weighs approximately 1.60 lb (0.70 kg) and utilizes Viton seal kits for optimal performance and durability in hydraulic systems.
