SUN HYDRAULICS
RVGBLCV
$299.03 USD
- SUN HYDRAULICS
- Material:RVGBLCV
- Model:RVGB-LCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RVGBLCV (RVGBLCV) is a versatile three-port, normally closed modulating element with relief functionality, designed to provide dual functions when used in conjunction with an external orifice. This component acts as a bypass compensator to control priority flow into a circuit, based on the external orifice's specifications. Any input flow that surpasses the priority flow is redirected to tank port 2. Additionally, if pressure at inlet port 1 exceeds the valve setting, it functions as a standard relief valve. The compensating pressure for all ranges is set at 120 psi (8 bar). The performance curve illustrates system pressure on the X-axis and the pressure differential across the control orifice on the Y-axis, with curves indicating various bypass flows. Importantly, this valve's capacity and performance are determined by bypass flow rather than control flow. This model fits into cavity T-17A and belongs to series 3, offering a capacity of up to 40 gpm (160 L/min) and can handle a maximum operating pressure of 5000 psi (350 bar). It exhibits a typical response time of 10 ms and has maximum valve leakage of 4 in\u00b3/min at 110 SUS (24 cSt) under conditions of 1000 psi (65 bar). For adjustments, it requires approximately five clockwise turns to increase settings. The valve hex size measures at 1-1/4 inches (31.8 mm), with an installation torque ranging from 150 to 160 lbf ft (203 to 217 Nm). The adjustment screw features an internal hex size of 5/32 inch (4 mm), while the locknut hex size is set at 9/16 inch (15 mm), requiring a torque between 80 and 90 lbf in. This model weighs approximately 1.60 lb (0.70 kg) and uses Viton seals for optimal performance and durability.
The Sun Hydraulics RVGBLCV (RVGBLCV) is a versatile three-port, normally closed modulating element with relief functionality, designed to provide dual functions when used in conjunction with an external orifice. This component acts as a bypass compensator to control priority flow into a circuit, based on the external orifice's specifications. Any input flow that surpasses the priority flow is redirected to tank port 2. Additionally, if pressure at inlet port 1 exceeds the valve setting, it functions as a standard relief valve. The compensating pressure for all ranges is set at 120 psi (8 bar). The performance curve illustrates system pressure on the X-axis and the pressure differential across the control orifice on the Y-axis, with curves indicating various bypass flows. Importantly, this valve's capacity and performance are determined by bypass flow rather than control flow. This model fits into cavity T-17A and belongs to series 3, offering a capacity of up to 40 gpm (160 L/min) and can handle a maximum operating pressure of 5000 psi (350 bar). It exhibits a typical response time of 10 ms and has maximum valve leakage of 4 in\u00b3/min at 110 SUS (24 cSt) under conditions of 1000 psi (65 bar). For adjustments, it requires approximately five clockwise turns to increase settings. The valve hex size measures at 1-1/4 inches (31.8 mm), with an installation torque ranging from 150 to 160 lbf ft (203 to 217 Nm). The adjustment screw features an internal hex size of 5/32 inch (4 mm), while the locknut hex size is set at 9/16 inch (15 mm), requiring a torque between 80 and 90 lbf in. This model weighs approximately 1.60 lb (0.70 kg) and uses Viton seals for optimal performance and durability.

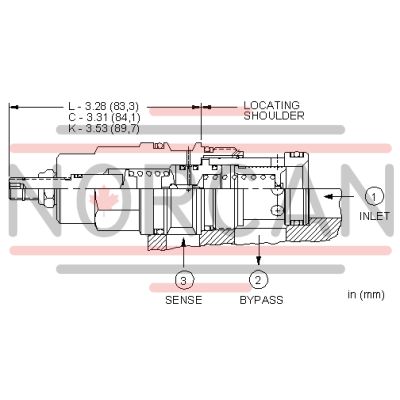

Three-port normally closed modulating elements with relief provide two functions when combined with an external orifice. The mainstage is a bypass compensator that controls a priority flow into the circuit, determined by the external orifice. Input flow in excess of the priority flow is bypassed to tank (port 2). If the inlet (port 1) pressure rises to the valve setting, the valve operates as a normal relief valve.
- Compensating pressure for all ranges is 120 psi (8 bar).
- Explanation of the performance curve: The X axis is system pressure. The Y axis shows the pressure differential that the valve creates across the control orifice. The curves represent various bypass flows (pump flow minus control flow). The capacity and performance of this valve is determined by the bypass flow, control flow is not a factor.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 4 in³/min.@1000 psi65 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
