SUN HYDRAULICS
RVGD8DV

$369.42 USD

SUN HYDRAULICS
Material:RVGD8DV
Model:RVGD-8DV
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RVGD8DV (Material Number: RVGD8DV) is a sophisticated, normally closed modulating element designed for precise pressure regulation in hydraulic systems. This valve features an integral pilot control cavity, which is ventable, externally drained, and utilizes a balanced piston design to ensure optimal performance. It is compatible with any T8A pressure control cartridge, allowing flexibility in controlling the pressure differential between the inlet port 1 and the drain port 4. The valve begins to open to tank port 2 when the inlet pressure reaches the pilot cartridge setting, regulating flow to maintain desired pressure levels. Additionally, a vent port (port 3) offers remote pilot or two-way valve control over the modulating element. Capable of handling maximum pressures at port 2, this valve is suitable for cross-port relief circuits but not recommended for load-holding applications due to spool leakage. The main stage orifice is safeguarded by a 150-micron stainless steel screen for durability and reliability. Pressure at port 4 can be directly added to the valve setting at a 1:1 ratio but should not exceed 5000 psi (350 bar). The RVGD8DV incorporates Sun's floating style construction to minimize internal part binding due to installation torque or machining variations. This model accepts various pilot control cartridges sold separately, including electroproportional, solenoid, air pilot, and hydraulic pilot operations. It supports systems with phosphate ester fluids when configured with EPDM seals; however, exposure to petroleum-based fluids will damage these seals. With a capacity of up to 60 gpm (240 L/min) and operating pressures up to 5000 psi (350 bar), this valve provides reliable performance in demanding applications. The installation requires careful torque management of both the main stage and T8A pilot control valves for optimal operation.

Description

This valve is a normally closed modulating element that incorporates an integral pilot control cavity. It is ventable, externally drained, and is a balanced piston design. The pilot control cavity will accept any T-8A pressure control cartridge. When the pressure at the inlet (port 1) reaches the pilot control cartridge setting, the modulating element starts to open to tank (port 2), throttling flow to regulate the pressure. The pilot cartridge's setting determines the difference in pressure between the inlet (port 1) and the drain (port 4). The vent port (port 3) that tees in between the main piston and pilot control cartridge, allows the modulating element to also be controlled by remote pilot or 2-way valves.

Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
Main stage orifice is protected by a 150 micron stainless steel screen.
Not suitable for use in load holding applications due to spool leakage.
Pressure at port 4 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).

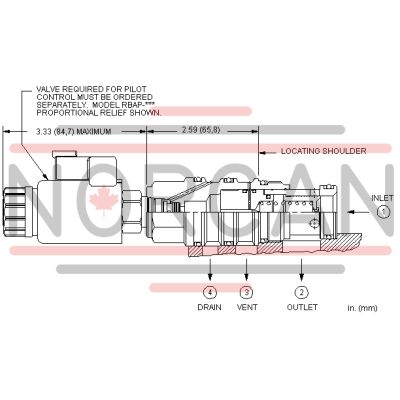

NOTE: With the -8 control option, the main stage valve should first be installed to the correct torque value. The T-8A pilot control valve should then be installed into the main stage valve to its required torque value.
The -8 control option allows the pilot control valve to be incorporated directly into the end of the relief cartridge via the T-8A cavity. These pilot control cartridges are sold separately and include electro-proportional, solenoid, air pilot, and hydraulic pilot operation. See Pilot Control Cartridges.
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-23A
Series	3
Capacity	60 gpm240 L/min.
Maximum Operating Pressure	5000 psi350 bar
Control Pilot Flow	15 - 20 in³/min.0,25 - 0,33 L/min.
Response Time - Typical	10 ms10 ms
Pilot Control Cavity	T-8AT-8A
Main stage leakage at 110 SUS (24 cSt)	4 in³/min.@1000 psi65 cc/min.@70 bar
Valve Hex Size	1 1/4 in.31,8 mm
Valve Installation Torque	150 - 160 lbf ft203 - 217 Nm
Model Weight	1.60 lb0,70 kg
Seal kit - Cartridge	Viton: 990-023-006

Show FAQ

Additional Resources

Notes:

Compound cartridge (pilot and main stage) assembly information is provided for reference only. Cartridges must be ordered separately and assembled at point of use.

How do I get a kick-down relief to reset?	The kick-down relief acts much like a circuit breaker. When the pressure at the inlet (port 1) of the relief valve rises to the setting, the valve pops open and drops the pressure down to 100 psi or so. The valve stays open until flow through it stops. Shutting off the supply of oil will reset the valve; reversing pressure on the valve is a positive way of resetting it.
Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
