RVGDCAN

$354.43 USD

SUN HYDRAULICS
Material:RVGDCAN
Model:RVGD-CAN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RVGDCAN (Material Number: RVGDCAN) is a ventable, pilot-operated, balanced piston relief cartridge with an external drain, designed for precise pressure regulation. This normally closed valve opens to the tank port when the inlet pressure reaches the valve setting, effectively throttling flow to maintain desired pressure levels. It features a vent port for remote control and a drain port that ensures insensitivity to back pressure. Known for its accuracy and smooth operation, this valve offers low pressure rise relative to flow and moderate response speed. It is capable of handling maximum pressures at port 2, making it suitable for cross-port relief circuits; however, users should consider spool leakage in such applications. The main stage orifice is protected by a 150-micron stainless steel screen. Notably, this valve is not recommended for load-holding applications due to potential spool leakage. The pressure at port 4 directly adds to the valve setting at a 1:1 ratio and must not exceed 5000 psi (350 bar). The RVGDCAN incorporates Sun's floating style construction to minimize internal part binding risks due to excessive installation torque or cavity/cartridge machining variations. It fits into cavity T-23A with a Series 3 capacity of 60 gpm (240 L/min) and operates at a maximum pressure of 5000 psi (350 bar). The control pilot flow ranges from 15-20 in\u00b3/min (0.25-0.33 L/min), with typical response times around 10 ms. Additional specifications include a maximum valve leakage of 4 in\u00b3/min at 110 SUS (24 cSt) under 1000 psi (65 bar), adjustment via five clockwise turns, and specific installation torque requirements. This model weighs approximately 1.60 lb (0.70 kg) and uses Viton seal kits for optimal performance in various hydraulic systems.

Description

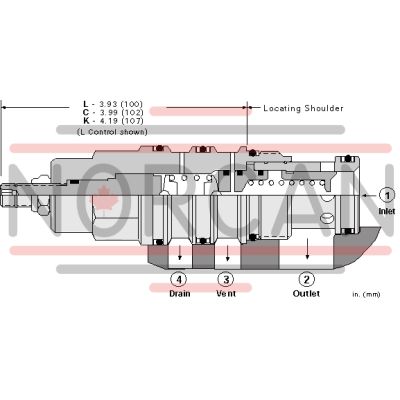

Ventable, pilot-operated, balanced piston relief cartridges with external drain are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. They provide a vent port (port 3) that connects between the main piston and pilot stage to provide for remote control by other pilot or 2-way valves and a drain (port 4) that makes them insensitive to back pressure. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.

Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
Main stage orifice is protected by a 150 micron stainless steel screen.
Not suitable for use in load holding applications due to spool leakage.
Pressure at port 4 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-23A
Series	3
Capacity	60 gpm240 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Control Pilot Flow	15 - 20 in³/min.0,25 - 0,33 L/min.
Response Time - Typical	10 ms10 ms
Maximum Valve Leakage at 110 SUS (24 cSt)	4 in³/min.@1000 psi65 cc/min.@70 bar
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 1/4 in.31,8 mm
Valve Installation Torque	150 - 160 lbf ft203 - 217 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	1.60 lb0,70 kg
Seal kit - Cartridge	Viton: 990-023-006
